Automotive Cable
Germany Standard
Single-core cable
FL91Y/FL11Y
Application and Description:
This TPE insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting
,charging,lighting,signal and instrument panel circuits.

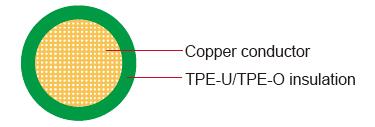

Cable Construction:
Conductor:
Cu-ETP1 bare according to DIN EN 13602
Insulation:
TPE-U (FL11Y)
TPE-O (FL91Y)
Standard:
ISO 6722 Class B (FL11Y)
ISO 6722 Class C (FL91Y)
Special properties:
Flame retardant
Also available as aluminium battery cables.
Technical Parameters:
Operating temperature: –40°C to +110°C (FL11Y)
–40°C to +125°C (FL91Y)
|
Conductor Construction |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
| Nominal cross- section | No. and Dia. of Wires | Diameter of Conductor max. | Electrical resistance at 20°C max. |
Nominal thickness | Overall Diameter Min. | Overall Diameter Max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | kg/km |
| 1x6 | 84/0.31 | 3.3 | 3.1 | 0.8 | 4.6 | 5.0 | 73 |
| 1x10 | 80/0.41 | 4.5 | 1.82 | 1.0 | 6.0 | 6.5 | 120 |
| 1x16 | 126/0.41 | 6.3 | 1.16 | 1.0 | 7.0 | 8.1 | 177 |
| 1x25 | 196/0.41 | 7.8 | 0.74 | 1.3 | 8.7 | 10.2 | 275 |
| 1x35 | 276/0.41 | 9.0 | 0.53 | 1.3 | 10.0 | 10.7 | 373 |
| 1x50 | 400/0.41 | 10.5 | 0.37 | 1.5 | 11.9 | 13.0 | 541 |
| 1x70 | 560/0.41 | 12.5 | 0.30 | 1.5 | 14.0 | 15.0 | 734 |
| 1x95 | 740/0.41 | 14.8 | 0.20 | 1.6 | 15.4 | 16.2 | 956 |
| 1x120 | 960/0.41 | 16.5 | 0.15 | 1.6 | 18.7 | 19.7 | 1218 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
