Automotive Cable
Germany Standard
FLR11Y
Application
This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting
,charging,lighting,signal and instrument panel circuits.

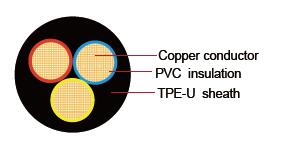

Construction:
Conductor:
Cu-ETP1 bare according to DIN EN 13602
Insulation:
PVC Outer
Sheath:
TPE-U
Standard:
ISO 6722 Class B
Special properties:
Flame retardant
Highly resistant against acids,lyes,petrol and diesel
Technical Parameters:
Operating temperature: –40°C to +105°C
|
Conductor Construction |
Insulation |
Cable |
||||||
|---|---|---|---|---|---|---|---|---|---|
| Nominal cross- section | No. and Dia. of Wires | Diameter of Conductor max. | Electrical resistance at 20°C max. |
Nominal thickness | Diameter of core | Sheath wall thickness | Overall Diameter Min. | Overall Diameter Max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | mm | kg/km |
| 2x0.75 | 42/0.16 | 1.2 | 24.7 | 0.4 | 1.9 | 0.8 | 5.2 | 5.6 | 47 |
| 3x1 | 32/0.21 | 1.5 | 18.5 | 0.35 | 2.0 | 0.7 | 5.6 | 6.0 | 54 |
| 3x1.5 | 30/0.26 | 1.7 | 13.3 | 0.4 | 2.4 | 0.75 | 6.5 | 6.9 | 71 |
