Automotive Cable
Germany Standard
Single-core cable
FLR13Y
Application
Automotive TPE-E insulated single-core cable is used for automotive industry. It has good mechanical and
thermal properties and excellent resistance to aggressive media.

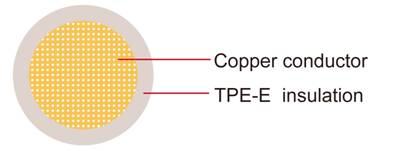

Construction:
Conductor:
Cu-ETP1 bare according to DIN EN13602
Insulation:
Thermoplastic elastomer on polyester basis (TPE-E)
Standard Compliance:
ISO 6722 Class D
Technical Parameters:
Operating temperature:–40 °C to +150 °C
| Conductor | Insulation | Cable | |||||
|---|---|---|---|---|---|---|---|
| Nominal cross- section |
No. and Dia. of Wires | Diameter max | Electrical resistance at 20℃ max. mΩ/m | thickness wall nom. | Overall diameter min. | Overall diameter max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | (mm) | (mm) | (mm) | kg/km |
| 1x0.50 | 19/0.19 | 1.00 | 37.10 | 0.30 | 1.50 | 1.70 | 6 |
| 1x0.75 | 19/0.23 | 1.20 | 24.70 | 0.30 | 1.70 | 1.90 | 9 |
| 1x1.00 | 19/0.26 | 1.35 | 18.50 | 0.30 | 1.90 | 2.10 | 11 |
| 1x1.50 | 19/0.32 | 1.70 | 12.70 | 0.30 | 2.20 | 2.40 | 16 |
| 1x2.00 | 19/0.38 | 2.00 | 9.31 | 0.30 | 2.40 | 2.70 | 22 |
| 1x2.50 | 19/0.41 | 2.20 | 7.60 | 0.35 | 2.70 | 3.00 | 25 |
| 1x4.00 | 56/0.31 | 2.75 | 4.71 | 0.40 | 3.40 | 3.70 | 4 |
| 1x6.00 | 84/0.31 | 3.30 | 3.10 | 0.40 | 4.00 | 4.30 | 60 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request
