FLR13Y11Y|automotive cable

Germany Standard

FLR13Y11Y

Automotive TPE-Einsulated ,TPE-Usheathedlow tension multi-cores cable is used for ABS systems, it has

excellent abrasion resistance and better resistance to bending fatigue.

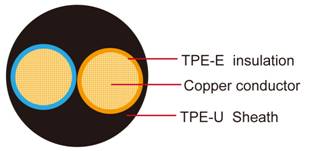

Conductor:

Cu-ETP1 according to DIN EN13602

Insulation:

Thermoplasticpolyester (TPE-E)

Sheath:

Thermoplastic polyurethane (TPE-U)

ISO 6722 Class C

Operating temperature:–40 °C to +125 °C

	Conductor			Insulation		Cable
Nominal cross- section	No. and Dia. of Wires	Diameter Max.	Electrical resistance at 20℃ Max.	thickness wall Nom.	Diameter of core	Sheath thickness	Overall Diameter min.	Overall Diameter max.	Weight approx.
mm²	No./mm	mm	mΩ/m	mm	mm	mm	mm	mm	Kg/km
2 x 0.50	28 /0.16	1.00	37.10	0.20	1.40	0.60	3.85	4.15	22
2 x 0.50	28 /0.16	1.00	37.10	0.20	1.40	0.85	4.35	4.65	27
2 x 0.50	28 /0.16	1.00	37.10	0.35	1.70	0.80	4.80	5.20	32
2 x 0.60	80/0.11	1.20	24.70	0.20	1.45	0.80	4.35	4.65	28
2 x 0.75	42/0.16	1.20	27.10	0.30	1.80	1.30	6.00	6.40	48
2 x 0.75	96 /0.10	1.20	27.10	0.30	1.80	1.30	6.00	6.40	62

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
