Automotive Cable
Germany Standard
Single-core cable
FLR14Y
Application:
This PFA insulated automotive cable is used for cable harnesses,cable with excellent resistance against
chemicals,can be used as an alternative to PTFE.

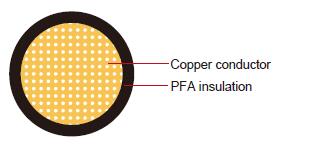

Construction:
Conductor:
Sliver or Nickel plated copper
Insulation:
PFA Standard:ISO 6722 Class H
Technical Parameters:
Operating temperature: –80°C to +260°C
|
Conductor Construction |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal Cross- section |
No. and Dia. of Wires |
Diameter of Conductor max. |
Electrical |
Nominal Thickness |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
1x0.5 |
19/0.19 |
1.00 |
38.2 |
0.22 |
1.4 |
1.60 |
7 |
1x0.75 |
19/0.22 |
1.20 |
25.4 |
0.24 |
1.7 |
1.90 |
10 |
1x1 |
19/0.25 |
1.35 |
19.1 |
0.24 |
1.9 |
2.10 |
12 |
1x1.5 |
19/0.32 |
1.70 |
13 |
0.24 |
2.2 |
2.40 |
17 |
1x2.5 |
19/0.40 |
2.20 |
7.8 |
0.28 |
2.7 |
3.00 |
28 |
1x4 |
56/0.30 |
2.70 |
4.8 |
0.32 |
3.4 |
3.70 |
45 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
