Automotive Cable
Germany Standard
Single-core cable
FLR2X-A
Application:
This XLPE insulated single-core cable is used in motor and battery ground low voltage circuit applications with
high temperatures (Rated for continuous use from -40°C up to 125°C), tight spaces, and where aging and
abrasion resistance are necessary.

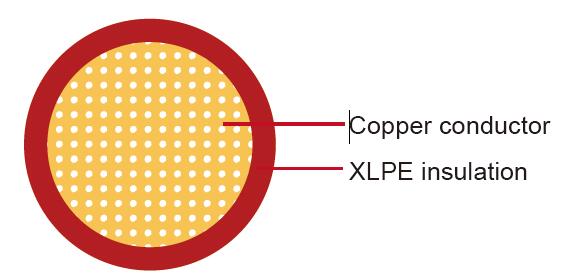

Construction:
Conductor:
Annealed stranded copper(Type A)
Insulation:
XLPE
Standard:
ISO 6722 Class C
Technical Parameters:
Operating temperature: –40°C to +125°C
|
Conductor Construction |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal cross- section |
No. and Dia. of Wires |
Diameter of Conductor- max. |
Electrical resistance at 20°Cmax. |
Nominal thickness |
Overall Diameter Min. |
Overall Diameter Max |
Weight approx. |
mm2 |
No./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
0.22 |
7/0.21 |
0.7 |
86.5 |
0.2 |
1.15 |
1.2 |
3.4 |
0.35 |
7/0.27 |
0.9 |
54.4 |
0.25 |
1.2 |
1.3 |
4. |
0.5 |
19/0.19 |
1.1 |
37.1 |
0.28 |
1.4 |
1.6 |
7 |
0.75 |
19/0.24 |
1.3 |
24.7 |
0.3 |
1.7 |
1.9 |
9.5 |
1 |
19/0.27 |
1.5 |
18.5 |
0.3 |
1.9 |
2.1 |
12 |
1.5 |
19/0.33 |
1.8 |
12.7 |
0.3 |
2.2 |
2.4 |
17 |
2.0 |
19/0.38 |
2.0 |
9.42 |
0.28 |
2.8 |
2.85 |
26 |
2.5 |
37/0.28 |
2.2 |
7.6 |
0.35 |
2.7 |
3.0 |
27 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
