Automotive Cable
Germany Standard
Single-core cable
FLR2X-B
Application:
This XLPE insulated single-core cable is used in motor and battery ground low voltage circuit applications with
high temperatures (Rated for continuous use from -40°C up to 125°C), tight spaces, and where aging and
abrasion resistance are necessary.

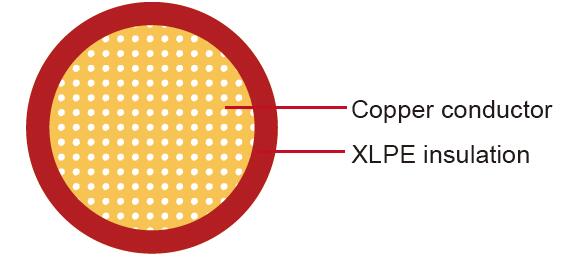

Construction:
Conductor:
Annealed stranded copper(Type B)
Insulation:
XLPE
Compliance:
ISO 6722 Class C
Technical Parameters:
Operating temperature: –40°C to +125°C
|
Conductor Construction |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal |
No. and Dia. of Wires |
Diameter of |
Electrical |
Nominal thickness |
Overall |
Overall |
Weight approx. |
mm2 |
No./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
0.35 |
12/0.21 |
0.9 |
52 |
0.2 |
|
1.4 |
4.5 |
0.5 |
16/0.21 |
1.1 |
37.1 |
0.28 |
1.4 |
1.6 |
6.5 |
0.75 |
24/0.21 |
1.3 |
24.7 |
0.3 |
1.7 |
1.9 |
9 |
1 |
32/0.21 |
1.5 |
18.5 |
0.3 |
1.9 |
2.1 |
12 |
1.5 |
30/0.26 |
1.8 |
12.7 |
0.3 |
2.2 |
2.4 |
16.5 |
2.0 |
28/0.31 |
2.0 |
9.69 |
0.28 |
2.65 |
2.8 |
22 |
2.5 |
50/0.26 |
2.2 |
7.6 |
0.35 |
2.7 |
3.0 |
27 |
3 |
44/0.31 |
2.4 |
6.36 |
0.32 |
3.25 |
3.4 |
35 |
4 |
56/0.31 |
2.8 |
4.71 |
0.4 |
3.4 |
3.7 |
43 |
6 |
84/0.31 |
3.4 |
3.14 |
0.4 |
4.0 |
4.3 |
61 |
10 |
80/0.41 |
4.5 |
1.82 |
0.6 |
5.3 |
6.0 |
108 |
16 |
126/0.41 |
5.8 |
1.16 |
0.65 |
6.4 |
7.2 |
161 |
20 |
152/0.41 |
6.3 |
0.955 |
0.65 |
7.0 |
7.8 |
200 |
25 |
196/0.41 |
7.2 |
0.743 |
0.65 |
7.9 |
8.7 |
257 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
