Single-core cable

FLR4Y

Application

Automotive PA insulated single-core cable is used for automobiles, motorcycles and other motor vehicles.

Especially suitable for use as fuel gauge wire, this cable is gasoline and diesel resistant.

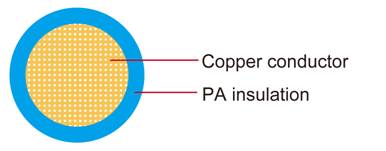

Construction:

FLR4Y

Conductor:

Cu-ETP1 bare or tinned according to DIN EN13602

Insulation:

Polyamide(PA)

Standard Compliance:

ISO 6722 Class B

Technical Parameters:

Operating temperature:-40℃ to 105℃

  Conductor Insulation Cable
Nominal
cross-
section
 No. and Dia. of Wires Diameter max. Resistance at 20℃
Bare/tinned
max.
mΩ/m 		thickness wall
min.		 Overall diameter
Weight approx.
(mm2) No./mm mm mΩ/m (mm) (mm) kg/km
FLR4Y-A
1x0.35 7/0.26 0.80 52.00/54.50 0.20 1.30 5
1x0.50 19/0.19 1.00 37.10/38.20 0.22 1.60 6
1x0.75 19/0.23 1.20 24.70/25.40 0.24 1.90 8
1x1.00 19/0.26 1.35 18.50/19.10 0.24 2.10 11
1x1.50 19/0.32 1.70 12.70/13.00 0.24 2.40 15
1x2.50 19/0.41 2.20 7.60/7.80 0.28 3.00 24
FLR4Y-B
1x0.35 12/0.21 0.90 52.00/54.50 0.20 1.40 4
1x0.50 16/0.21 1.00 37.10/38.20 0.22 1.60 6
1x0.75 24/0.21 1.20 24.70/25.40 0.24 1.90 8
1x1.00 32/0.21 1.35 18.50/19.10 0.24 2.10 11
1x1.50 30/0.26 1.70 12.70/13.00 0.24 2.40 15
1x2.50 50/0.26 2.20 7.60/7.80 0.28 3.00 24
1x4.00 56/0.31 2.75 4.70/4.80 0.32 3.70 40

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
