Automotive Cable
Germany Standard
Single-core cable
FLR6Y
Application
Automotive FEP insulated single-core cable is used for automobiles, motorcycles and other motor
vehicles，Especially suitable for wiring inside the engine compartment.

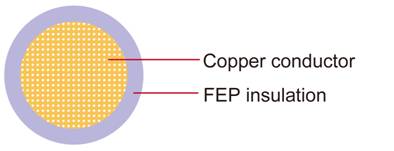

Construction:
Conductor:
Cu-ETP1 bare or tinned according to DIN EN13602
Insulation:
FEP(Fluorinated Ethylene Propylene)
Standard Compliance:
ISO 6722 Class F
LV112
Technical Parameters:
Operating temperature:–65 °C to +210 °C
| Conductor | insulation | Cable | |||||
|---|---|---|---|---|---|---|---|
| Nominal cross- section |
No. and Dia. of Wires | Diameter max. | Electrical resistance at 20℃ max. | thickness wall nom. | Overall diameter min. | Overall diameter max. | Weight approx. |
| (mm2) | No./mm | mm | mΩ/m | (mm) | (mm) | (mm) | kg/km |
| 1x0.35 | 12/0.21 | 0.90 | 52.00 | 0.30 | 1.20 | 1.40 | 5 |
| 1x0.50 | 16/0.21 | 1.00 | 37.10 | 0.30 | 1.50 | 1.70 | 7 |
| 1x0.75 | 24/0.21 | 1.20 | 24.70 | 0.25 | 1.60 | 1.80 | 9 |
| 1x1.00 | 32/0.21 | 1.35 | 18.50 | 0.30 | 1.80 | 2.00 | 11 |
| 1x1.50 | 30/0.26 | 1.70 | 12.70 | 0.30 | 2.10 | 2.30 | 16 |
| 1x2.50 | 50/0.26 | 2.20 | 7.60 | 0.35 | 2.70 | 2.90 | 26 |
| 1x4.00 | 56/0.31 | 2.75 | 4.70 | 0.40 | 3.30 | 3.60 | 41 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
