Automotive Cable
Germany Standard
Single-core cable
FLR7Y-B
Application and Description:
This ETFE insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting
,charging,lighting,signal and instrument panel circuits.

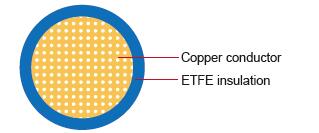

Cable Construction:
Conductor:
Cu-ETP1 bare/tinned according to DIN EN 13602
Insulation:
ETFE
Standard:
ISO 6722 Class E
Special properties:
Highly resistant against acids,lyes,petrol and diesel/Excellent chmical resistance/Good mechanical & thermal
properties
Technical Parameters:
Operating temperature: –45°C to +180°C
|
Conductor Construction |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
| Nominal cross- section | No. and Dia. of Wires | Diameter of Conductor max. | Electrical resistance at 20°C bare/tinned max. |
Nominal thickness | Overall Diameter Min. | Overall Diameter Max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | kg/km |
| 1x0.35 | 12/0.21 | 0.9 | 54/55.5 | 0.2 | 1.2 | 1.4 | 5 |
| 1x0.5 | 16/0.21 | 1.0 | 37.1/38.2 | 0.22 | 1.4 | 1.6 | 7 |
| 1x0.75 | 24/0.21 | 1.2 | 24.7/25.4 | 0.24 | 1.7 | 1.9 | 10 |
| 1x1 | 32/0.21 | 1.35 | 18.5/19.1 | 0.24 | 1.9 | 2.1 | 12 |
| 1x1.5 | 30/0.26 | 1.7 | 12.7/13.0 | 0.24 | 2.2 | 2.4 | 18 |
| 1x2.5 | 50/0.26 | 2.2 | 7.6/7.82 | 0.28 | 2.7 | 3.0 | 30 |
| 4 | 56/0.31 | 2.75 | 4.71/4.85 | 0.32 | 3.4 | 3.7 | 42 |
| 6 | 84/0.31 | 3.3 | 3.14 | 0.32 | 4.0 | 4.3 | 62 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
