Single-core cable

FLR7Y

Application

Automotive ETFE insulated single-core cable is used for automobiles, it has good mechanical and thermal

properties and excellent resistance to aggressive media, especially for the engine compartment.

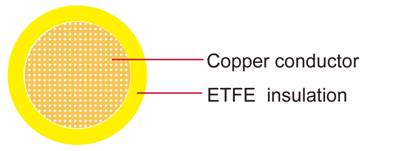

Construction:

FLR7Y

Conductor:

Cu-ETP1 bare or tinned according to DIN EN13602

Insulation:

Ethylene tetrafluoroethylene (ETFE)

Standard Compliance:

ISO 6722 Class E

Technical Parameters:

Operating temperature:–65 °C to +180 °C

  Conductor Insulation Cable
Nominal
cross-
section
 No. and Dia. of Wires Diameter max. Electrical resistance at 20℃ max. thickness wall nom. Overall diameter min. Overall diameter max. Weight approx.
FLR7Y-B
(mm2) No./mm mm mΩ/m (mm) (mm) (mm) kg/km
1x0.35 12/0.21 0.90 52.00 0.20 1.20 1.40 5
1x0.50 16/0.21 1.00 37.10 0.22 1.50 1.70 7
1x0.75 24/0.21 1.20 24.70 0.24 1.60 1.80 9
1x1.00 32/0.21 1.35 18.50 0.24 1.80 2.00 11
1x1.50 30/0.26 1.70 12.70 0.24 2.10 2.30 16
1x2.50 50/0.26 2.20 7.60 0.28 2.70 2.90 26
1x4.00 56/0.31 2.75 4.70 0.32 3.30 3.60 41
1x6.00
84/0.31
3.30
3.14/3.23
0.32
4.15
4.30
61
1x10.00
80/0.41
1.50
1.82/1.85
0.48
5.75
6.00
109
1x16.00
126/0.41
6.30
1.16/1.18
0.52
6.85
7.10
166
FLR7Y-A
1x0.35
7/0.26
0.80
52.00/54.50
0.20
1.30
1.40
4.5
1x0.50
19/0.19
1.00
37.10/38.20
0.22
1.50
1.60
6.6
1x0.75
19/0.23
1.20
24.70/25.40
0.24
1.80
1.90
9.0
1x1.00
19/0.26
1.35
18.50/19.10
0.24
2.00
2.10
12.4
1x1.50
19/0.32
1.70
12.70/13.00
0.24
2.30
2.40
17.8
1x2.50
19/0.41
2.20
7.60/7.80
0.28
2.85
3.00
29.0

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
