Automotive Cable
Germany Standard
Single-core cable
FLRYDY
Application and Description:
This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting
,charging,lighting,signal and instrument panel circuits.

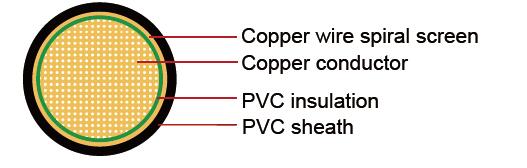

Cable Construction:
Conductor:
Cu-ETP1 bare according to DIN EN 13602
Insulation:
PVC
Screen:
Copper wire spiral shield
Sheath:
PVC
Standard:
ISO 6722 Class B
Special properties:
Flame retardant
Flexible conductors with PVC thin wall insulation with increased mechanical strength
Technical Parameters:
Operating temperature: –40°C to +105°C
|
Conductor Construction |
Insulation |
Cable |
||||||
|---|---|---|---|---|---|---|---|---|---|
| Nominal cross- section | No. and Dia. of Wires | Diameter of Conductor max. | Electrical resistance at 20°C max. | Nominal thickness | Diameter of core | Sheath wall thickness | Overall Diameter Min. | Overall Diameter Max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | mm | kg/km |
| 1x075 | 24/0.21 | 1.2 | 24.7 | 0.3 | 1.75 | 0.3 | 2.5 | 2.7 | 20 |
| 1x1.00 | 32/0.21 | 1.35 | 18.5 | 0.3 | 1.95 | 0.3 | 2.7 | 2.9 | 23 |
| 1x1.50 | 30/0.26 | 1.7 | 12.7 | 0.3 | 2.25 | 0.3 | 3.0 | 3.2 | 29 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
