Automotive Cable
Germany Standard
Single-core cable
FLRYW
Application:
This PVC insulated automotive cable is used for cable harnesses.

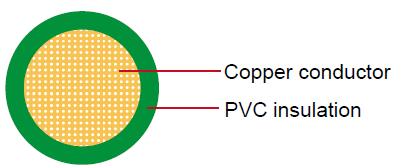

Construction:
Conductor: Cu-ETP1 bare according to DIN EN 13602
Insulation: PVC insulation
Standard:
ISO 6722 Class C
Technical Parameters:
Operating temperature: –40°C to +125°C
|
Conductor Construction |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal Cross- section |
No. and Dia. of Wires |
Diameter |
Electrical |
Thickness min. |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
1x0.35 |
12/0.21 |
0.90 |
55.5 |
0.20 |
1.1 |
1.2 |
4.5 |
1x0.50 |
16/0.21 |
1.10 |
38.2 |
0.20 |
1.2 |
1.4 |
6.6 |
1x0.75 |
24/0.21 |
1.20 |
25.4 |
0.24 |
1.7 |
1.9 |
9 |
1x1.00 |
32/0.21 |
1.35 |
19.1 |
0.24 |
1.9 |
2.1 |
11 |
1x1.50 |
30/0.26 |
1.70 |
13.0 |
0.24 |
2.2 |
2.4 |
16 |
1x2.00 |
50/0.26 |
1.90 |
9.69 |
0.28 |
2.5 |
2.8 |
22 |
1x2.50 |
45/0.31 |
2.20 |
7.80 |
0.28 |
2.7 |
3.0 |
26 |
1x3.00 |
56/0.31 |
2.40 |
6.36 |
0.28 |
2.9 |
3.2 |
32.5 |
1x4.00 |
56/0.31 |
2.75 |
4.80 |
0.32 |
3.4 |
3.7 |
42 |
1x6.00 |
84/0.31 |
3.30 |
3.20 |
0.32 |
4.0 |
4.3 |
61 |
1x10.0 |
80/0.31 |
4.50 |
1.85 |
0.48 |
5.4 |
5.8 |
108 |
1x16.0 |
126/0.41 |
6.30 |
1.18 |
0.52 |
6.4 |
6.5 |
170 |
1x25.0 |
196/0.41 |
7.20 |
0.76 |
0.52 |
7.9 |
8.7 |
265 |
1x30.0 |
224/0.41 |
8.30 |
0.68 |
0.64 |
8.7 |
9.60 |
322 |
1x35.0 |
276/0.41 |
8.50 |
0.54 |
0.64 |
9.4 |
10.40 |
391 |
1x40.0 |
308/0.41 |
9.60 |
0.50 |
0.71 |
10.0 |
11.10 |
443 |
1x50.0 |
396/0.41 |
10.50 |
0.38 |
0.71 |
11.0 |
12.20 |
522 |
1x60.0 |
296/0.51 |
11.60 |
0.33 |
0.80 |
12.0 |
13.30 |
605 |
1x70.0 |
360/0.51 |
12.50 |
0.26 |
0.80 |
13.0 |
14.40 |
698 |
1x95.0 |
475/0.51 |
14.80 |
0.16 |
0.90 |
15.3 |
16.70 |
749 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
