Automotive Cable
Germany Standard
Single-core cable
FLRYWd
Application:
This PVC insulated single-core cable is used for vehicle constructions.

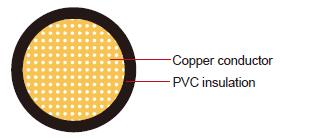

Construction:
Conductor:
Cu-ETP1 bare or tinned according to DIN EN 13602
Insulation:
PVC
Standard:
ISO 6722 Class B
Technical Parameters:
Operating temperature: –40°C to +105°C
|
Conductor Construction |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal |
No. and Dia. of Wires |
Diameter |
Electrical |
Nominal thickness |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
1x0.35 |
7/0.26 |
0.80 |
52 |
0.20 |
1.3 |
1.4 |
4.48 |
1x0.50 |
16/0.21 |
1.00 |
37.1 |
0.22 |
1.4 |
1.7 |
6.6 |
1x0.75 |
24/0.21 |
1.20 |
24.7 |
0.24 |
1.7 |
1.9 |
9.0 |
1x1.00 |
32/0.21 |
1.35 |
18.5 |
0.24 |
1.9 |
2.1 |
11.0 |
1x1.50 |
30/0.26 |
1.70 |
12.7 |
0.24 |
2.2 |
2.4 |
16.0 |
1x2.00 |
30/0.31 |
1.90 |
9.42 |
0.28 |
2.4 |
2.8 |
22.0 |
1x2.50 |
50/0.26 |
2.20 |
7.6 |
0.28 |
2.7 |
3.0 |
6.0 |
1x3.00 |
45/0.31 |
2.40 |
6.15 |
0.32 |
2.9 |
3.4 |
32.5 |
1x4.00 |
56/0.31 |
2.75 |
4.71 |
0.32 |
3.4 |
3.8 |
42.0 |
1x6.00 |
84/0.31 |
3.30 |
3.14 |
0.32 |
4.0 |
4.3 |
61.0 |
1x10.00 |
80/0.41 |
4.50 |
1.82 |
0.48 |
5.4 |
6.0 |
108 |
1x16.00 |
126/0.41 |
6.30 |
1.16 |
0.52 |
7.3 |
7.9 |
170 |
1x25.00 |
196/0.41 |
7.80 |
0.74 |
0.52 |
8.6 |
9.4 |
265 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
