Automotive Cable
Germany Standard
Single-core cable
FLRYY
Application:
This PVC insulated, PVC sheathed cable is used for low voltage electrical installations in vehicles.

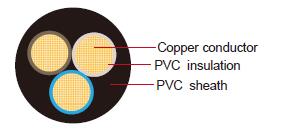

Construction:
Conductor:
Cu-ETP1 bare or tinned according to DIN EN13602
Insulation:
PVC
Sheath:
PVC
Standard Compliance:
ISO 6722 Class B
Technical Parameters:
Operating temperature: –40 °C to +105 °C
|
Conductor |
Insulation |
Cable |
|||
|---|---|---|---|---|---|---|
Nominal Cross- section |
No. and Dia. of Wires |
Electrical |
Thickness Wall nom. |
Diameter of Core |
Sheath Thickness |
Overall Diameter max. |
mm2 |
no./mm |
mΩ/m |
mm |
mm |
mm |
mm |
1x0.35 |
12/0.21 |
52.0 |
0.20 |
1.3 |
0.4 |
2.2 |
2x0.35 |
12/0.21 |
52.0 |
0.20 |
1.3 |
0.5 |
3.7 |
3x0.35 |
12/0.21 |
52.0 |
0.20 |
1.3 |
0.5 |
3.9 |
4x0.35 |
12/0.21 |
52.0 |
0.20 |
1.3 |
0.5 |
4.3 |
5x0.35 |
12/0.21 |
52.0 |
0.20 |
1.3 |
0.5 |
4.6 |
7x0.35 |
12/0.21 |
52.0 |
0.20 |
1.3 |
0.5 |
5.0 |
10x0.35 |
12/0.21 |
52.0 |
0.20 |
1.3 |
0.5 |
6.4 |
1x0.5 |
16/0.21 |
37.1 |
0.22 |
1.3 |
0.6 |
2.5 |
2x0.5 |
16/0.21 |
37.1 |
0.22 |
1.6 |
0.6 |
4.5 |
3x0.5 |
16/0.21 |
37.1 |
0.22 |
1.6 |
0.6 |
4.8 |
4x0.5 |
16/0.21 |
37.1 |
0.22 |
1.6 |
0.6 |
5.2 |
5x0.5 |
16/0.21 |
37.1 |
0.22 |
1.6 |
0.6 |
5.6 |
7x0.5 |
16/0.21 |
37.1 |
0.22 |
1.6 |
0.6 |
6.1 |
10x0.5 |
16/0.21 |
37.1 |
0.22 |
1.6 |
0.6 |
7.7 |
1x0.75 |
24/0.21 |
24.7 |
0.24 |
1.9 |
0.4 |
2.8 |
2x0.75 |
24/0.21 |
24.7 |
0.24 |
1.9 |
0.6 |
5.1 |
3x0.75 |
24/0.21 |
24.7 |
0.24 |
1.9 |
0.6 |
5.4 |
|
Conductor |
Insulation |
Cable |
|||
Nominal Cross- section |
No. and Dia. of Wires |
Electrical |
Thickness Wall nom. |
Diameter of Core |
Sheath Thickness |
Overall Diameter max. |
mm2 |
no./mm |
mΩ/m |
mm |
mm |
mm |
mm |
4x0.75 |
24/0.21 |
24.7 |
0.24 |
1.9 |
0.6 |
5.9 |
5x0.75 |
24/0.21 |
24.7 |
0.24 |
1.9 |
0.6 |
6.4 |
7x0.75 |
24/0.21 |
24.7 |
0.24 |
1.9 |
0.6 |
7.0 |
10x0.75 |
24/0.21 |
24.7 |
0.24 |
1.9 |
0.8 |
9.3 |
1x1.0 |
32/0.21 |
18.5 |
0.24 |
2.1 |
0.4 |
3.0 |
2x1.0 |
32/0.21 |
18.5 |
0.24 |
2.1 |
0.6 |
5.5 |
3x1.0 |
32/0.21 |
18.5 |
0.24 |
2.1 |
0.6 |
5.8 |
4x1.0 |
32/0.21 |
18.5 |
0.24 |
2.1 |
0.6 |
6.4 |
5x1.0 |
32/0.21 |
18.5 |
0.24 |
2.1 |
0.6 |
7.0 |
7x1.0 |
32/0.21 |
18.5 |
0.24 |
2.1 |
0.8 |
8.0 |
10x1.0 |
32/0.21 |
18.5 |
0.24 |
2.1 |
0.8 |
10.1 |
1x1.5 |
30/0.26 |
12.7 |
0.24 |
2.4 |
0.4 |
3.3 |
2x1.5 |
30/0.26 |
12.7 |
0.24 |
2.4 |
0.6 |
6.1 |
3x1.5 |
30/0.26 |
12.7 |
0.24 |
2.4 |
0.6 |
6.4 |
4x1.5 |
30/0.26 |
12.7 |
0.24 |
2.4 |
0.6 |
7.1 |
5x1.5 |
30/0.26 |
12.7 |
0.24 |
2.4 |
0.6 |
7.8 |
7x1.5 |
30/0.26 |
12.7 |
0.24 |
2.4 |
0.8 |
8.9 |
10x1.5 |
30/0.26 |
12.7 |
0.24 |
2.4 |
0.4 |
11.4 |
1x2.5 |
50/0.26 |
7.6 |
0.28 |
3.0 |
0.6 |
3.9 |
2x2.5 |
50/0.26 |
7.6 |
0.28 |
3.0 |
0.6 |
7.3 |
3x2.5 |
50/0.26 |
7.6 |
0.28 |
3.0 |
0.6 |
7.8 |
4x2.5 |
50/0.26 |
7.6 |
0.28 |
3.0 |
0.6 |
8.6 |
5x2.5 |
50/0.26 |
7.6 |
0.28 |
3.0 |
0.8 |
9.8 |
7x2.5 |
50/0.26 |
7.6 |
0.28 |
3.0 |
0.8 |
10.7 |
10x2.5 |
50/0.26 |
7.6 |
0.28 |
3.0 |
0.8 |
13.7 |
