Automotive Cable
Germany Standard
Single-core cable
FLU6Y
Application:
This FEP insulated automotive cable is used for cable harnesses. Very good resistance to fuels and abrasion.

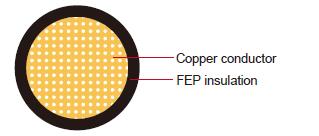

Construction:
Conductor:
Plain,tinned Silver or Nickel plated copper
Insulation:
FEP
Standard:
ISO 6722 Class F
Technical Parameters:
Operating temperature: –40°C to +200°C
|
Conductor Construction |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal Cross- section |
No. and Dia. of Wires |
Diameter of Conductor max. |
Electrical |
Nominal Thickness |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
1x0.13 |
7/0.16 |
0.5 |
140 |
0.16 |
0.85 |
0.95 |
2.3 |
1x0.14 |
7/0.16 |
0.5 |
140 |
0.16 |
0.85 |
0.95 |
2.3 |
1x0.22 |
7/0.21 |
0.7 |
86.5 |
0.16 |
0.95 |
1.05 |
2.9 |
1x0.35 |
7/0.26 |
0.7 |
55.5 |
0.16 |
1.10 |
1.20 |
4.3 |
1x0.50 |
19/0.19 |
1.0 |
38.2 |
0.16 |
1.30 |
1.40 |
6.4 |
1x0.75 |
19/0.23 |
1.2 |
25.4 |
0.16 |
1.50 |
1.60 |
8.8 |
1x1.00 |
19/0.26 |
1.4 |
19.1 |
0.16 |
1.65 |
1.75 |
10.8 |
1x1.50 |
19/0.32 |
1.7 |
13.0 |
0.16 |
1.90 |
2.10 |
15.8 |
1x2.50 |
19/0.41 |
2.2 |
7.82 |
0.20 |
2.45 |
2.75 |
25.8 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
