Automotive Cable
Germany Standard
Single-core cable
FLYWK&FLRYWK
Application and Description:
This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting
,charging,lighting,signal and instrument panel circuits.

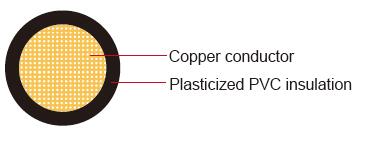

Cable Construction:
Conductor:
Cu-ETP1 bare according to DIN EN 13602
Insulation:
Plasticized PVC (heat and cold resistant)
Standard:
ISO 6722 Class B
Special properties:
Cold bending test according to ISO 6722 at –50 °C.
Short-term and long-term ageing according to ISO 6722, Class B.
Flexible conductors with PVC Thin wall insulation with increased mechanical strength
Technical Parameters:
Operating temperature: –50°C to +105°C
|
Conductor Construction |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
| Nominal cross- section | No. and Dia. of Wires | Diameter of Conductor max. |
Electrical resistance at 20°C max. |
Nominal thickness | Overall Diameter Min. | Overall Diameter Max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | g/km |
| 1x0.5 | 16/0.20 | 1.0 | 37.1 | 0.28 | 1.4 | 1.6 | 6 |
| 1x0.75 | 24/0.20 | 1.2 | 24.7 | 0.6 | 2.2 | 2.5 | 33 |
| 1x1.00 | 32/0.20 | 1.4 | 18.5 | 0.3 | 1.8 | 2.1 | 57 |
| 1x1.50 | 30/0.25 | 1.7 | 12.7 | 0.3 | 2.2 | 2.4 | 111 |
| 1x2.50 | 50/0.25 | 2.1 | 7.6 | 0.7 | 3.3 | 3.7 | 278 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
