Automotive Cable
Germany Standard
FLYZ
Application
Automotive PVC insulated multi-cores cable is used in internal wiring in automobile where high flexibility, thermo
and mechanical strength are required

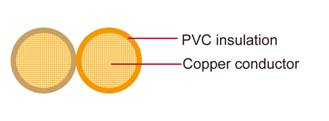

Construction:
Conductor:
Cu-ETP1 bare according to DIN EN13602
Insulation:
PVC
Standard Compliance:
ISO 6722 Calss B
Technical Parameters:
Operating temperature:–40 °C to +105 °C
| Conductor | Insulation | Cable | ||||||
|---|---|---|---|---|---|---|---|---|
| Nominal cross- section |
No. and Dia. of Wires | Diameter Max. | Electrical resistance at 20℃ Max. | thickness wall Nom. | Diameter of core | Diameter Width | Diameter Height | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | Kg/km |
| 2 x0.50 | 16 /0.21 | 1.00 | 37.10 | 0.50 | 2.10 | 4.40±0.20 | 2.10±0.15 | 20 |
| 2 x0.75 | 24 /0.21 | 1.20 | 24.70 | 0.60 | 2.35 | 4.70±0.30 | 2.35±0.15 | 23 |
| 2 x1.00 | 32/0.20 | 1.50 | 19.50 | 0.60 | 2.55 | 5.10±0.30 | 2.50±0.15 | 32 |
| 2 x1.50 | 48 /0.26 | 1.70 | 12.70 | 0.60 | 2.80 | 5.60±0.30 | 2.80±0.15 | 39 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
