Automotive Cable
HAEXF
Application:
This XLPE insulated single-core cable is used in low-tension electric circults for automobiles; especially
used for circults requiring heat resistance and cold resistance.

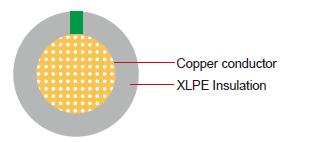

Construction:
Conductor:
Tinned stranded copper
Insulation:
XLPE
Standard Compliance:
JASO D608
Technical Parameters:
Operating temperature: –40 °C to +150°C
|
Conductor |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal |
No. and Dia. of Wires |
Diameter max. |
Electrical |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
1x0.30 |
12/0.18 |
0.8 |
61.1 |
0.5 |
1.8 |
1.9 |
12 |
1x0.50 |
20/0.18 |
1.0 |
36.7 |
0.5 |
2.0 |
2.2 |
16 |
1x0.75 |
30/0.18 |
1.2 |
24.4 |
0.5 |
2.2 |
2.4 |
21 |
1x0.85 |
34/0.18 |
1.2 |
21.6 |
0.5 |
2.2 |
2.4 |
23 |
1x1.25 |
50/0.18 |
1.5 |
14.7 |
0.6 |
2.7 |
2.9 |
30 |
1x2.00 |
79/0.18 |
1.9 |
10.1 |
0.6 |
3.1 |
3.4 |
39 |
1x2.50 |
50/0.25 |
2.1 |
7.9 |
0.6 |
3.4 |
3.7 |
44 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
