Automotive Cable

HDT

Application

Automotive PVC insulated single-core cable is used for automobiles, motorcycles and other motor vehicles.

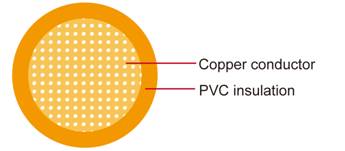

Construction:

HDT

Conductor:

Soft-annealed copperaccording to ASTM B3

Insulation:

PVC

Standard Compliance:

SAE J1128

Technical Parameters:

Operating temperature:–40 °C to +85 °C

Conductor Insulation Cable
SIZE Nominal
cross-
section
 No. and Dia. of Wires Diameter
Max.		 thickness wall
Nom.		 Overall Diameter
max. 		Weight
approx.
AWG mm2 No./mm mm mm mm Kg/km
20 1 x 0.50 7\0.31 1.00 0.91 2.80 14
18 1 x 0.80 16\0.26 1.50 0.94 3.00 20
16 1 x 1.00 19\0.29 1.50 1.02 3.50 25
14 1 x 2.00 19\0.36 1.80 1.04 3.90 33
12 1 x 3.00 19\0.45 2.30 1.17 4.60 49
10 1 x 5.00 19\0.57 3.00 1.17 5.30 71
8 1 x 8.00 49\0.45 3.70 1.40 6.50 98

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
