Automotive Cable
HFSSF-T3
Application:
This halogen free compound insulated single-core cable is used in low voltage circuits in automobiles(Vehicles).

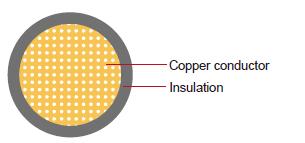

Construction:
Conductor:
Annealed standed copper
Insulation:
Halogen free compound
Standard Compliance:
ES SPEC
Technical Parameters:
Operating temperature:–40 °C to +135°C
|
Conductor |
Insulation |
Cable |
||||
|---|---|---|---|---|---|---|---|
Nominal |
No. and Dia. of Wires |
Diameter max. |
Electrical |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight Approx. |
mm2 |
no./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
1x0.30 |
19/0.16 |
0.8 |
48.8 |
0.3 |
1.4 |
1.5 |
5.0 |
1x0.50 |
19/0.19 |
1.0 |
34.6 |
0.3 |
1.6 |
1.7 |
6.9 |
1x0.75 |
19/0.23 |
1.2 |
23.6 |
0.3 |
1.8 |
1.9 |
10.0 |
1x1.25 |
37/0.21 |
1.5 |
14.6 |
0.3 |
2.1 |
2.2 |
14.3 |
1x2.00 |
37/0.26 |
1.8 |
9.5 |
0.4 |
2.6 |
2.7 |
22.2 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
