Belden Equivalent Cables

Multipair Individually and Overall Screened Cables

Multipair Individually and Overall Screened Cables-Belden Equivalent 8167

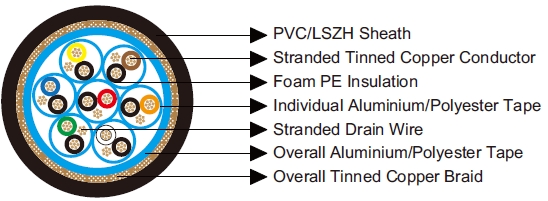

Belden cables have individually screened pairs laid up in a foil/braid screen. Each individually screened pair has a

24AWG stranded tinned copper drain wire. Belden cables are suitable for EIA RS-232 and EIA RS-422

applications, used as computer cables.

Conductor:

Tinned copper wire.

Insulation:

FoamPE.

Individual Screen:

Aluminium/Polyester Tape.

Drain Wire:

Tinned copper wire.

Overall Screen1:

Aluminium/Polyester Tape.

Overall Screen2:

Tinned copper braid, 65% coverage.

Sheath:

PVC/LSZH.

Insulation Colour:

Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange.

AWG		24
Conductor Construction		7x0.2
UL Style		2493
Maximum Conductor Resistance	Ω/km	85
Voltage Rating	V	300
Nominal Capacitance Conductor to Conductor	pF/m	41
Nominal Capacitance Conductor to Screen	pF/m	72
Bending Radius		10xOverall Diameter
Operating Temperature	℃	-40~60

Ordering Code	No. of pairs	Insulation Thickness	Sheath Thickness	Overall Diameter
		mm	mm	mm
BE118167V	7	0.47	1.22	11.3
BE118167H	7	0.47	1.22	11.3
