Multipair Overall Foil & Braid Screened Cables
Multipair Overall Foil & Braid Screened Cables-Belden Equivalent 8307
Application
Belden cables have pairs laid up in a foil/braid screen. Belden cables are suitable for EIA RS-232 and CAD/CAM
applications, used as computer cables.

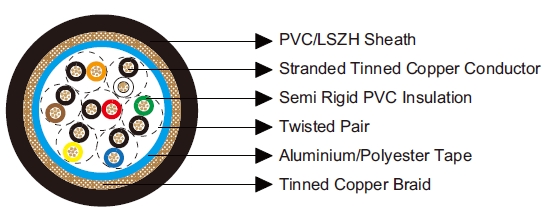

Construction
Conductor:
Tinned copper wire.
Insulation:
Semi Rigid PVC.
Overall Screen1:
Aluminium/Polyester Tape.
Overall Screen2:
Tinned copper braid, 65% coverage.
Sheath:
PVC/LSZH.
Insulation Colour:
Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange.
Electrical & Mechanical Characteristics
| AWG | 22 | |
|---|---|---|
| Conductor Construction | 7x0.254 | |
| UL Style | 2464 | |
| Maximum Conductor Resistance | Ω/km | 54.8 |
| Voltage Rating | V | 300 |
| Nominal Capacitance Conductor to Conductor | pF/m | 115 |
| Nominal Capacitance Conductor to Screen | pF/m | 207 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -30~80 |
Dimensions
| Ordering Code | No. of pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
|---|---|---|---|---|
| mm | mm | mm | ||
| BE118307V | 7 | 0.25 | 0.81 | 8.8 |
| BE118307H | 7 | 0.25 | 0.81 | 8.8 |
