Belden Equivalent Cables
Multipair Overall Foil & Braid Screened Cables
Multipair Overall Foil & Braid Screened Cables-Belden Equivalent 8333
Application
Belden cables have pairs laid up in a foil/braid screen. Belden cables are suitable for EIA RS-232 and CAD/CAM
applications, used as computer cables.

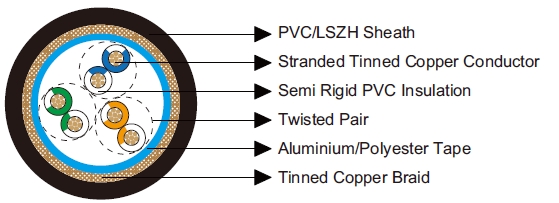

Construction
Conductor:
Tinned copper wire.
Insulation:
Semi Rigid PVC.
Overall Screen1:
Aluminium/Polyester Tape.
Overall Screen2:
Tinned copper braid, 65% coverage.
Sheath:
PVC/LSZH.
Insulation Colour:
White/Blue & Blue/White, White/Orange & Orange/White, White/Green & Green/White.
Electrical & Mechanical Characteristics
| AWG | 24 | |
|---|---|---|
| Conductor Construction | 7x0.2 | |
| UL Style | 2464 | |
| Maximum Conductor Resistance | Ω/km | 85 |
| Voltage Rating | V | 300 |
| Nominal Capacitance Conductor to Conductor | pF/m | 98 |
| Nominal Capacitance Conductor to Screen | pF/m | 164 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -30~80 |
Dimensions
| Ordering Code | No. of pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
|---|---|---|---|---|
| mm | mm | mm | ||
| BE118333V | 3 | 0.25 | 0.81 | 6.7 |
| BE118333H | 3 | 0.25 | 0.81 | 6.7 |
