Multipair Overall Screened Cables
Multipair Overall Screened Cables-Belden Equivalent 8720
Application
Belden multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper
drain wire. Belden cables are suitable for used as audio, control and instrumentation cables.

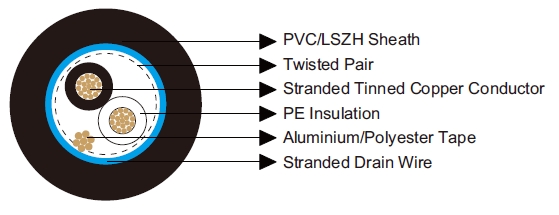

Construction
Conductor:
Tinned copper wire.
Insulation:
PE.
Overall Screen:
Aluminium/Polyester Tape.
Drain Wire:
Tinned copper wire.
Sheath:
PVC/LSZH.
Insulation Colour:
Black, Clear.
Electrical & Mechanical Characteristics
| AWG | 14 | |
|---|---|---|
| Conductor Construction | 19x0.36 | |
| UL Style | 20253 | |
| Maximum Conductor Resistance | Ω/km | 10 |
| Voltage Rating | V | 600 |
| Nominal Capacitance Conductor to Conductor | pF/m | 79 |
| Nominal Capacitance Conductor to Screen | pF/m | 154 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -20~80 |
Dimensions
| Ordering Code | No. of pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
|---|---|---|---|---|
| mm | mm | mm | ||
| BE118720V | 1 | 0.81 | 0.89 | 9.0 |
| BE118720H | 1 | 0.81 | 0.89 | 9.0 |
