Multicore Overall Screened Cables-Belden Equivalent 8729

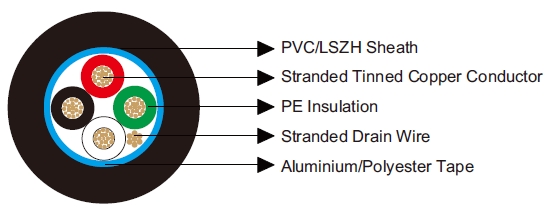

Belden multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape

with a drain wire. Belden Equivalent 8729 cables are suitable for used as audio, control and instrumentation

cables.

Conductor:

Tinned copper wire.

Insulation:

PE.

Overall Screen:

Aluminium/Polyester Tape.

Drain Wire:

Tinned copper covered steel.

Sheath:

PVC/LSZH.

Insulation Colour:

Black, Red, Green, Clear.

AWG		22
Conductor Construction		19x0.16
UL Style		2094
Maximum Conductor Resistance	Ω/km	54.8
Voltage Rating	V	300
Nominal Capacitance Conductor to Conductor	pF/m	72
Nominal Capacitance Conductor to Screen	pF/m	138
Bending Radius		10xOverall Diameter
Operating Temperature	℃	-40~75

Ordering Code	No. of Cores	Insulation Thickness	Sheath Thickness	Overall Diameter
		mm	mm	mm
BE118729V	4	0.41	1.30	6.5
BE118729H	4	0.41	1.30	6.5
