Belden Equivalent Cables

Multipair Individually Screened Cables

Multipair Individually Screened Cables-Belden Equivalent 8764

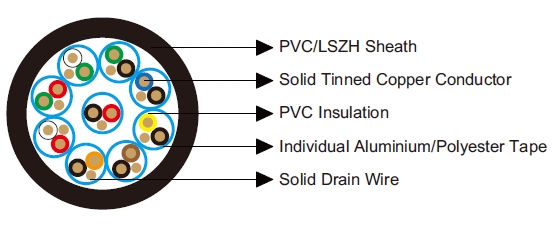

Belden Equivalent 8764 cables have individually screened pairs laid up. Each individually screened pair has a

22AWG solid tinned copper drain wire. Belden Equivalent 8764 cables are suitable for used as audio, control and

instrumentation cables.

Conductor:

Tinned copper wire.

Insulation:

PVC.

Individual Screen:

Aluminium/Polyester Tape.

Drain Wire:

Solid tinned copper wire.

Sheath:

PVC/LSZH.

Insulation Colour:

Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red &

White, Red & Green.

AWG		22
Conductor Construction		Solid
UL Style		2464
Maximum Conductor Resistance	Ω/km	54.8
Voltage Rating	V	300
Nominal Capacitance Conductor to Conductor	pF/m	131
Nominal Capacitance Conductor to Screen	pF/m	253
Bending Radius		10xOverall Diameter
Operating Temperature	℃	-20~80

Ordering Code	No. of pairs	Insulation Thickness	Sheath Thickness	Overall Diameter
		mm	mm	mm
BE118764V	9	0.33	1.02	10.8
BE118764H	9	0.33	1.02	10.8
