Multipair Individually Screened Cables-Belden Equivalent 8775

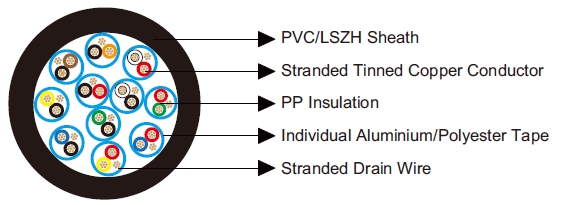

Belden Equivalent 8775 cables have individually screened pairs laid up. Each individually screened pair has a

22AWG stranded tinned copper drain wire. Belden Equivalent 8775 cables are used as computer cables.

Conductor:

Tinned copper wire.

Insulation:

PP.

Individual Screen:

Aluminium/Polyester Tape.

Drain Wire:

Tinned copper wire.

Sheath:

PVC/LSZH.

Insulation Colour:

Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red &

White, Red & Green, Red & Blue, Red & Yellow.

AWG		22
Conductor Construction		7x0.254
UL Style		2919
Maximum Conductor Resistance	Ω/km	54.8
Voltage Rating	V	30
Nominal Capacitance Conductor to Conductor	pF/m	98
Nominal Capacitance Conductor to Screen	pF/m	180
Bending Radius		10xOverall Diameter
Operating Temperature	℃	-20~80

Ordering Code	No. of pairs	Insulation Thickness	Sheath Thickness	Overall Diameter
		mm	mm	mm
BE118775V	11	0.25	1.22	12.3
BE118775H	11	0.25	1.22	12.3
