Multipair Overall Screened Cables-Belden Equivalent 9309

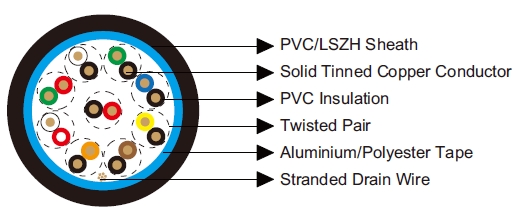

Belden Equivalent 9309 multipair overall screened cables have pairs laid up in an aluminum/polyester tape with

a tinned copper drain wire.Belden Equivalent 9309 cables are suitable for used as audio, control and

instrumentation cables.

Conductor:

Tinned copper wire.

Insulation:

PVC.

Overall Screen:

Aluminium/Polyester Tape.

Drain Wire:

Tinned copper wire.

Sheath:

PVC/LSZH.

Insulation Colour:

Black/Red, Black/White, Black/Green, Black/Blue, Black/Yellow, Black/Brown, Black/Orange, Red/White,

Red/Green.

AWG		22
Conductor Construction		Solid
UL Style		2464
Maximum Conductor Resistance	Ω/km	54.8
Voltage Rating	V	300
Nominal Capacitance Conductor to Conductor	pF/m	115
Nominal Capacitance Conductor to Screen	pF/m	164
Bending Radius		10xOverall Diameter
Operating Temperature	℃	-20~80

Ordering Code	No. of pairs	Insulation Thickness	Sheath Thickness	Overall Diameter
		mm	mm	mm
BE119309V	9	0.33	0.84	9.22
BE119309H	9	0.33	0.84	9.22
