Multipair Overall Screened Cables-Belden Equivalent 9327

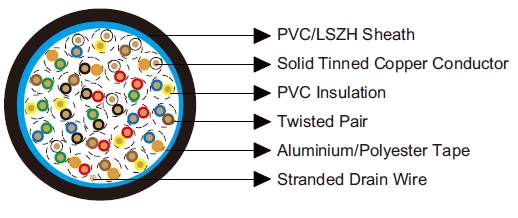

Belden Equivalent 9327 multipair overall screened cables have pairs laid up in an aluminum/polyester tape with

a tinned copper drain wire. Belden Equivalent 9327 cables are suitable for used as audio, control and

instrumentation cables.

Conductor:

Tinned copper wire.

Insulation:

PVC.

Overall Screen:

Aluminium/Polyester Tape.

Drain Wire:

Tinned copper wire.

Sheath:

PVC/LSZH.

Insulation Colour:

Black/Red, Black/White, Black/Green, Black/Blue, Black/Yellow, Black/Brown, Black/Orange, Red/White,

Red/Green, Red/Blue, Red/Yellow, Red/Brown, Red/Orange, Green/White, Green/Blue, Green/Yellow,

Green/Brown, Green/Orange, White/Blue, White/Yellow, White/Brown, White/Orange, Blue/Yellow, Blue/Brown,

Blue/Orange, Brown/Yellow, Brown/Orange.

AWG		22
Conductor Construction		Solid
UL Style		2464
Maximum Conductor Resistance	Ω/km	54.8
Voltage Rating	V	300
Nominal Capacitance Conductor to Conductor	pF/m	115
Nominal Capacitance Conductor to Screen	pF/m	164
Bending Radius		10xOverall Diameter
Operating Temperature	℃	-20~80

Ordering Code	No. of pairs	Insulation Thickness	Sheath Thickness	Overall Diameter
		mm	mm	mm
BE119327V	27	0.33	1.14	15.6
BE119327H	27	0.33	1.14	15.6
