Multipair Overall Screened Cables
Multipair Overall Screened Cables-Belden Equivalent 9504
Application

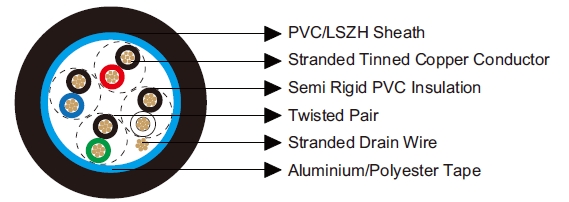

Belden Equivalent 9504 multipair overall screened cables have pairs laid up in an aluminum/polyester tape with
a tinned copper drain wire. Belden Equivalent 9504 cables are suitable for RS232 applications, used as audio,
control and instrumentation cables.
Construction
Conductor:
Tinned copper wire.
Insulation:
Semi Rigid PVC.
Overall Screen:
Aluminium/Polyester Tape.
Drain Wire:
Tinned copper wire.
Sheath:
PVC/LSZH.
Insulation Colour:
Black/Red, Black/White, Black/Green, Black/Blue.
Electrical & Mechanical Characteristics
AWG |
|
24 |
|---|---|---|
Conductor Construction |
|
7x0.2 |
UL Style |
|
2464 |
Maximum Conductor Resistance |
Ω/km |
85 |
Voltage Rating |
V |
300 |
Nominal Capacitance Conductor to Conductor |
pF/m |
98 |
Nominal Capacitance Conductor to Screen |
pF/m |
164 |
Bending Radius |
|
10xOverall Diameter |
Operating Temperature |
℃ |
-30~80 |
Dimensions
| Ordering Code | No. of pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
|---|---|---|---|---|
| mm | mm | mm | ||
| BE119504V | 4 | 0.25 | 0.81 | 6.7 |
| BE119504H | 4 | 0.25 | 0.81 | 6.7 |
