Multicore Overall Screened Cables-Belden Equivalent 9545

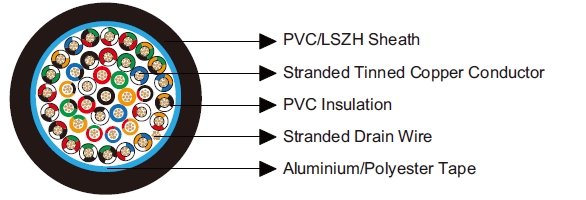

Belden Equivalent 9545 multicore overall screened cables have individually insulated cores laid up in an

aluminum/polyester tape with a tinned copper drain wire. Belden Equivalent 9545cables are suitable for RS232

applications, used as audio, control and instrumentation cables.

Conductor:

Tinned copper wire.

Insulation:

PVC.

Overall Screen:

Aluminium/Polyester Tape.

Drain Wire:

Stranded Tinned Copper, 7x0.20.

Sheath:

PVC/LSZH.

Insulation Colour:

Black, White, Red, Green, Orange, Blue, White/Black, Red/Black, Green/Black, Orange/Black, Blue/Black,

Black/White, Red/White, Green/White, Blue/White, Black/Red, White/Red, Orange/Red, Blue/Red, Red/Green,

Orange/Green, Black/White/Red, White/Black/Red, Red/Black/White, Green/Black/White, Orange/Black/White,

Blue/Black/White, Black/Red/Green, White/Red/Green, Red/Black/Green,Green/Black/Orange,

Orange/Black/Green, Blue/White/Orange, Black/White/Orange, White/Red/Orange, Orange/White/Blue,

White/Red/Blue, Black/White/Green, White/Black/Green, Red/White/Green.

AWG		24
Conductor Construction		7x0.20
UL Style		2464
Maximum Conductor Resistance	Ω/km	85
Voltage Rating	V	300
Nominal Capacitance Conductor to Conductor	pF/m	98
Nominal Capacitance Conductor to Screen	pF/m	180
Bending Radius		10xOverall Diameter
Operating Temperature	℃	-30~80

Ordering Code	No. of Cores	Insulation Thickness	Sheath Thickness	Overall Diameter
		mm	mm	mm
BE119545V	40	0.25	1.02	10.3
BE119545H	40	0.25	1.02	10.3
