Multipair Overall Screened Cables
Multipair Overall Screened Cables-Belden Equivalent 9680
Application
Belden Equivalent 9680 multipair overall screened cables have pairs laid up in an aluminum/polyester tape with
a tinned copper drain wire. Belden Equivalent 9680 cables are used as low capacitance computer cables for EIA
RS-232/422 applications.

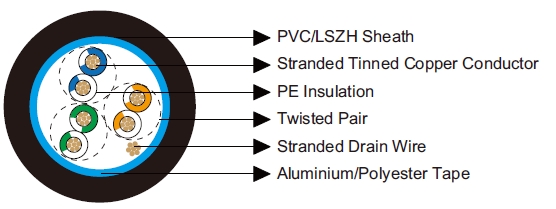

Construction
Conductor:
Tinned copper wire.
Insulation:
PE.
Overall Screen:
Aluminium/Polyester Tape.
Drain Wire:
Tinned copper wire.
Sheath:
PVC/LSZH.
Insulation Colour:
White/Blue & Blue/White, White/Orange & Orange/White, White/Green & Green/White.
Electrical & Mechanical Characteristics
| AWG | 24 | |
|---|---|---|
| Conductor Construction | 7x0.2 | |
| UL Style | 2919 | |
| Maximum Conductor Resistance | Ω/km | 85 |
| Voltage Rating | V | 30 |
| Nominal Capacitance Conductor to Conductor | pF/m | 51 |
| Nominal Capacitance Conductor to Screen | pF/m | 90 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -20~80 |
Dimensions
| Ordering Code | No. of pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
|---|---|---|---|---|
| mm | mm | mm | ||
| BE119680V | 3 | 0.25 | 0.89 | 6.4 |
| BE119680H | 3 | 0.25 | 0.89 | 6.4 |
