Multipair Overall Screened Cables-Belden Equivalent 9684

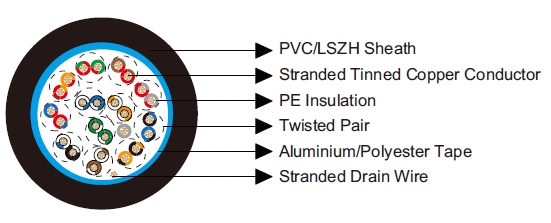

Belden Equivalent 9684 multipair overall screened cables have pairs laid up in an aluminum/polyester tape with

a tinned copper drain wire. Belden Equivalent 9684 cables are used as low capacitance computer cables for EIA

RS-232/422 applications.

Conductor:

Tinned copper wire.

Insulation:

PE.

Overall Screen:

Aluminium/Polyester Tape.

Drain Wire:

Tinned copper wire.

Sheath:

PVC/LSZH.

Insulation Colour:

White/Blue & Blue/White, White/Orange & Orange/White, White/Green & Green/White, White/Brown &

Brown/White, White/Gray & Gray/White, Red/Blue & Blue/Red, Red/Orange & Orange/Red, Red/Green &

Green/Red, Red/Brown & Brown/Red, Red/Gray & Gray/Red, Black/Blue & Blue/Black, Black/Orange &

Orange/Black, Gray (single conductor).

AWG		24
Conductor Construction		7x0.2
UL Style		2919
Maximum Conductor Resistance	Ω/km	85
Voltage Rating	V	30
Nominal Capacitance Conductor to Conductor	pF/m	51
Nominal Capacitance Conductor to Screen	pF/m	90
Bending Radius		10xOverall Diameter
Operating Temperature	℃	-20~80

Ordering Code	No. of pairs	Insulation Thickness	Sheath Thickness	Overall Diameter
		mm	mm	mm
BE119684V	12	0.25	0.89	10.6
BE119684H	12	0.25	0.89	10.6
