Cable Glands

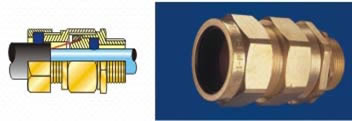

PG Threaded Weatherproof & Waterproof Cable Glands for Non Armoured Cables
Standards
EN 50262: 1999, DIN-46320/46255
Applications
Suitable for all types of unarmoured plastic or rubber sheathed cables for indoor as well as outdoor installations.
If is used in applications where it is essential to provide an IP66 seal on the outer sheath of the cable.
Feature
Provide seal on outer sheath of the unarmoured cable
Ingress Protection
IP65
Material
Brass BS 2874 CZ121 Pb3
Optional Acessories
With round or hexagonal intermediate sockets and long or short anti thread
Thread Option
PG and metric threads also available on request
Seal Option
Neoprene; silicone
Plating Option
Chrome Finish, Brass Finish, Nickel Finish or as specified
Operating Temperature
Standard seals: -20 ℃ to +80 ℃(Neoprene Seals)
Extended seals: -60℃ to +180℃(Silicone Seals)
Accessories
Lock Nut, Sealing Washer, Earth Tag, Shroud, Lead Sheath Washer, Serrated Washer, Stopping Plug, Reducer,
Adaptor
Ordering Code
(Gland Type / Size & Entry Thread Size), e.g. PG 36 – 9mm
Technical Data
| Part No. | Entry Threads Size "C" |
Cable Diameter |
Thread Length | Hexagon Dimensions (H) | Length (L) |
|---|---|---|---|---|---|
| PG-7 | PG7 | 6 | 6 | H15X18 | 19 |
| PG-9 | PG9 | 7-8 | 7 | H19X22 | 20 |
| PG-11 | PG11 | 9-11 | 7 | H21X 27 | 21 |
| PG-13.5 | PG13.5 | 9-11 | 7 | H24X28 | 22 |
| PG-16 | PG16 | 12-14 | 7 | H26X30 | 24 |
| PG-21 | PG21 | 15-17 | 8 | H31X35 | 25 |
| PG-29 | PG29 | 19- 23 | 8 | H42X46 | 26 |
| PG-36 | PG36 | 25- 31 | 9 | H52X58 | 30 |
| PG-42 | PG42 | 33- 37 | 10 | H60X65 | 36 |
| PG-48 | PG48 | 39- 43 | 10 | H66X71 | 37 |
