Single Compression A2 Type Weatherproof & Waterproof (IP66) Cable Glands for non armoured cables

Standards

EN 50262 : 1999, BS 6121 1989

Applications

Suitable for all types of unarmoured plastic or rubber sheathed cables for indoor as

well as outdoor installations. It is used in applications where it is essential to provide

an IP66 seal on the outer sheath of the cable.

Feature

Single compression for cable sheath.

Ingress Protection

IP66 (To IP68 if fi tted with a gasket).

Material

Brass BS 2874 CZ121 Pb3

Thread Option

ISO METRIC; NPT; BSP; PG or as specified

Seal Option

Neoprene; silicone

Plating Option

Brass Finish, Nickel Finish, Chrome Finish or as specified

Operating Temperature

Standard seals: -20 °C to +80 °C (Neoprene Seals)

Extended seals: -60 °C to +180 °C (Silicone Seals)

Accessories

Lock Nut, Sealing Washer, Earth Tag, Shroud, Serrated Washer, Stopping Plug,

Reducer, Adaptor

Ordering Code

(Gland Type / Size & Entry Thread Size), e.g. A2 32/M32 - 10mm

Technical Data

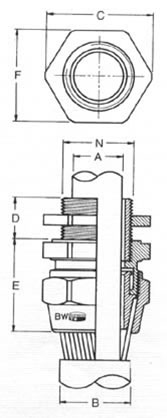

Part No. Entry Threads Size Overall Diameter. Overall Length "E" Hexagonal Dimensions
(Maximum)
Metric
"N"		 Entry
Thread
Length 		Max.
"A"		 Max.
 "B"		 "F" "C"
A2-20SS M20 10 3.0 8.0 18 25 28.5
A2-20S M20 10 7.0 11.0 18 25 28.5
A2-20 M20 10 11.0 14.5 20 27 30.0
A2-25 M25 10 14.5 20.5 25 35 38.5
A2-32 M32 10 20.5 26.5 25 42 48.0
A2-40 M40 15 26.5 34.5 28 52 59.0
A2-50 M50 15 34.5 43.5 30 65 72.0
A2-63 M63 15 43.5 56.0 35 82 97.0
A2-75 M75 15 56.0 65.0 40 96 112.0
A2-82 M82 15 65.0 74.0 50 100 113.0
A2-90 M90 15 73.0 82.0 59 100 113.0
