Italian Standard Control Cable
FROR 450/750V
Flexible multicore cable, flame retardant and with reduced emission of corrosive gases.
Normative references:
| Italian standard: | CPT 007 | CEI 20-22 II | |||
| Colours code: | CEI UNEL 00722/ HD 308 |

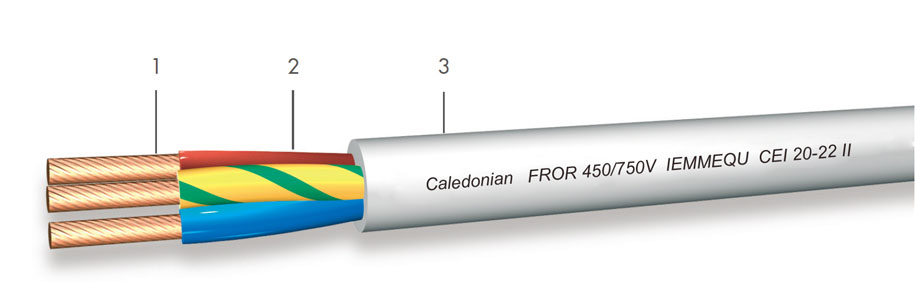

Construction:
1- Flexible copper class 5 CEI EN 60228
2 - PVC TI2
3 - PVC TM2
Characteristics:
Rated voltage: 450/750 V
Operating Temperature: +5°C - +60° C on the conductor
Max. temperature of short circuit: 160° C on the conductor (max. duration 5 seconds)
-
Min. bending radius: Mobile installation: 12 x outer diameter Fixed installation: 6 x outer diameter
Applications:
| Section | Max diam. conductor | Insulation thickness | sheath thickness | Outer diameter | Max cond. resist. at 20°C | Cable weight |
|---|---|---|---|---|---|---|
| mm2 | mm | mm | mm | mm | ohms/km | kg/km |
| 2x1 | 0.21 | 0.7 | 1.0 | 7.3 | 19.5 | 75 |
| 2x1.5 | 0.26 | 0.7 | 1.0 | 7.8 | 13.3 | 95 |
| 2x2.5 | 0.26 | 0.8 | 1.2 | 9.6 | 7.98 | 145 |
| 2x4 | 0.31 | 0.8 | 1.2 | 10.6 | 4.95 | 190 |
| 2x6 | 0.31 | 0.8 | 1.3 | 12.0 | 3.30 | 250 |
| 3 G 1 | 0.21 | 0.7 | 1.0 | 7.7 | 19.5 | 90 |
| 3 G 1.5 | 0.26 | 0.7 | 1.0 | 8.3 | 13.3 | 115 |
| 3 G 2.5 | 0.26 | 0.8 | 1.2 | 10.2 | 7.98 | 175 |
| 3 G 4 | 0.31 | 0.8 | 1.3 | 11.5 | 4.95 | 235 |
| 3 G 6 | 0.31 | 0.8 | 1.4 | 13.0 | 3.30 | 330 |
| 4 G 1 | 0.21 | 0.7 | 1.0 | 8.4 | 19.5 | 110 |
| 4 G 1.5 | 0.26 | 0.7 | 1.1 | 9.2 | 13.3 | 140 |
| 4 G 2.5 | 0.26 | 0.8 | 1.2 | 11.1 | 7.98 | 210 |
| 4 G 4 | 0.31 | 0.8 | 1.3 | 12.5 | 4.95 | 290 |
| 4 G 6 | 0.31 | 0.8 | 1.4 | 14.2 | 3.30 | 410 |
| 5 G 1 | 0.21 | 0.7 | 1.1 | 9.4 | 19.5 | 140 |
| 5 G 1.5 | 0.26 | 0.7 | 1.2 | 10.3 | 13.3 | 180 |
| 5 G 2.5 | 0.26 | 0.8 | 1.3 | 12.4 | 7.98 | 260 |
| 5 G 4 | 0.31 | 0.8 | 1.5 | 14.1 | 4.95 | 360 |
| 5 G 6 | 0.31 | 0.8 | 1.5 | 15.7 | 3.30 | 510 |
