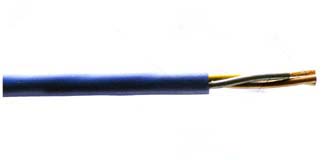

TML Cable - Type A for Process Water, Type B Drinking Water

Product application :

As connection cable for submersible electric motors (pumps) for the permanent use in process and drinking

water up to a temperature of 70°C. In addition DIN VDE 0298 T.300 has to be respected.

Product characteristic:

Construction:

Fine stranded bare copper conductor

EPR outer sheath

EPR insulation

Technical:

Characteristics at 20oC:

Rated voltage : 600/1000V

Maximum admissible operating voltage:

in 1 ph and 3 ph systems : 720 / 1200V

in D C systems : 1800 V

conductor resistance to DIN / VDE 0295

Test voltage 50Hz, 5 min : 2500 V

Temperature range:

Maximum admissible conductor

Temperature in operation 90°C

Short circuit temperature 250°C

Fixed : -40oC up to + 80°C

In motion : -25oC up to + 80°C

Tensile stress : maximum 15 N each sqmm conductor cross sectio

Properties:

Adapted to DIN VDE 0250 and DIN VDE 0282

Excellent insulation properties in water

Very low water absorption

Preservation of the mechanical strength

VI.31/10904/01 - confirming the suitability of TML type B in drinking water.

TML Cable - Type A for Process Water, Type B Drinking Water

Product specification:

AWG No. of Cores Conductor cross section
mm² 		O .D. mm Gross Copper weight
kg/km 		Gross
Weight
kg/km
Min - Max.
16 1 1.5 5.8 7.2 14.4 54
14 1 2.5 6.4 8 24 76
12 1 4 7.4 9 38 105
10 1 6 8 11 58 135
8 1 10 9.8 12.5 96 200
6 1 16 11 14.5 154 290
4 1 25 12.5 16.5 240 410
2 1 35 14 18.5 336 560
1 1 50 16.5 21 480 740
2/0 1 70 18.5 23.5 672 1000
3/0 1 95 21 26 912 1300
4/0 1 120 23.5 28.5 1152 1650
300kcmil 1 150 26 31.5 1440 2000
350kcmil 1 185 27.5 34.5 1776 2500
  - 1 240 30.5 38 2304 3100
  - 1 300 33.5 41.5 2880 3700
16 2 1.5 9 11.5 29 130
14 2 2.5 10.5 13.5 48 190
12 2 4 12 15 77 260
10 2 6 13.5 18.5 115 350
8 2 10 18.5 24 192 550
6 2 16 21 27.5 307 900
4 2 25 25 31.5 480 1300
16 3 1.5 9.6 12.5 43 150
14 3 2.5 11.5 14.5 72 220
12 3 4 13 16 115 340
10 3 6 14.5 20 173 480
8 3 10 20 25.5 288 750
6 3 16 22.5 29.5 461 1100
4 3 25 26.5 34 720 1450
2 3 35 29.5 38 1008 2100
1 3 50 34.5 44 1440 2800
2/0 3 70 39 49.5 2016 3800
3/0 3 95 44 54.6 2736 4600
4/0 3 120 47.5 59 3456 5400
16 4 1.5 10.5 13.5 58 190
14 4 2.5 12.5 15.5 96 280
12 4 4 14.5 18 154 390
10 4 6 16.5 22 230 520
8 4 10 22.5 24.5 384 950
6 4 16 26.5 28.5 614 1400
4 4 25 32 34 960 1950
2 4 35 33 42.5 1344 2700
1 4 50 38 48.5 1920 3600
2/0 4 70 43 54.5 2688 4900
3/0 4 95 50 60.5 3648 6200
4/0 4 120 53 65.5 4608 7200
16 5 1.5 11.5 15 72 230
14 5 2.5 13.5 17 120 340
12 5 4 16 19.5 192 470
10 5 6 18 24.5 288 640
8 5 10 24 30.5 480 1150
6 5 16 27 35.5 768 1700
