Industrial Cables Multi-Core Flexible Cables
309Y to BS 6500
Application and Description
309Y to BS 6500 cables are suitable for domestic premises, kitchen, office for light service or light portable
apparatuses. With their special insulation and sheath compounds, these cables are adapted for apparatus in
kitchen and heating and for use in zones with high temperature (like lighting system apparatuses) without
contact with warm parts and radiations. Unsuitable for outdoor use, in industrial and agricultural buildings or
non-domestic portable tools. 309Y is equivalent to harmonized code H05V2V2-F.

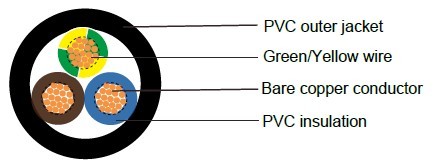

Cable Construction
Bare copper fine wire conductor
Stranding to BS Class 5 or IEC 60228 Class 5
PVC core insulation TI3 to BS 7655
Green/Yellow grounding (3 conductors and above)
PVC outer jacket TM3 to BS 7655
Core Identification
2 Cores: Blue, Brown
3 Cores: Green/Yellow, Blue, Brown
4 Cores: Green/Yellow, Brown, Black, Grey
5 Cores: Green/Yellow, Brown, Black, Grey, Blue
Technical Characteristics
Working voltage: 300/500 volts
Test voltage: 2000 volts
Flexing bending radius: 15xOverall diameter
Static bending radius: 4xOverall diameter
Flexing temperature: +5º C to +90º C
Static temperature: -40º C to +90º C
Short circuit temperature: +160º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩxkm
Cable Parameter
| AWG (No of Strands/ Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area #xmm² |
Nominal Thickness of Insulation mm |
Nominal Thickness of Sheath mm |
Nominal Overall Diameter mm |
Nominal Copper Weight kg/km | Nominal Weight kg/km |
| 3092Y | ||||||
| 20(16/32) | 2x0.50 | 0.6 | 0.8 | 5.6-7 | 14.4 | 46 |
| 18(24/32) | 2x0.75 | 0.6 | 0.8 | 6-7.6 | 14.4 | 56 |
| 17(32/32) | 2x1.00 | 0.6 | 0.8 | 6.4-8 | 19 | 65 |
| 16(30/30) | 2x1.50 | 0.7 | 0.8 | 7.4-9 | 29 | 80 |
| 14(30/50) | 2x2.50 | 0.8 | 1.0 | 8.9-11 | 48 | 135 |
| 3093Y | ||||||
| 20(16/32) | 3x0.50 | 0.6 | 0.8 | 5.8-7.2 | 14.4 | 56 |
| 18(24/32) | 3x0.75 | 0.6 | 0.8 | 6.4-8 | 21.6 | 61 |
| 17(32/32) | 3x1.00 | 0.6 | 0.8 | 6.8-8.4 | 29 | 77 |
| 16(30/30) | 3x1.50 | 0.7 | 0.9 | 8-9.8 | 43 | 108 |
| 14(30/50) | 3x2.50 | 0.8 | 1.1 | 9.6-12 | 72 | 165 |
| 12(56/28) | 3x40 | 0.8 | 1.2 | 10.8-13.1 | 115 | 224 |
| 3094Y | ||||||
| 20(16/32) | 4x0.50 | 0.6 | 0.8 | 6.4-7.8 | 14.4 | 68 |
| 18(24/32) | 4x0.75 | 0.6 | 0.8 | 6.8-8.6 | 29 | 80 |
| 17(32/32) | 4x1.00 | 0.6 | 0.9 | 7.6-9.4 | 38 | 100 |
| 16(30/30) | 4x1.50 | 0.7 | 1.0 | 9-11 | 58 | 140 |
| 14(30/50) | 4x2.50 | 0.8 | 1.1 | 10.5-13 | 96 | 210 |
| 12(56/28) | 4x40 | 0.8 | 1.2 | 11.8-14.1 | 154 | 295 |
| 3095Y | ||||||
| 18(24/32) | 5x0.75 | 0.6 | 0.9 | 7.4-9.6 | 36 | 110 |
| 17(32/32) | 5x1.00 | 0.6 | 0.9 | 8.3-10 | 48 | 130 |
| 16(30/30) | 5x1.50 | 0.7 | 1.1 | 10-12 | 72 | 185 |
| 14(30/50) | 5x2.50 | 0.8 | 1.2 | 11.5-14 | 120 | 265 |
| 12(56/28) | 5x40 | 0.8 | 1.4 | 13.1-16.3 | 192 | 361 |
