Industrial Cables Single Core Fixed Wiring Cable
6181B to BS 7889
Application and Description
6181B to BS 7889e cables are designed for fixed wiring purposes in domestic and industrial power/lighting
applications. They can be installed in trunking or conduit, or may be surface mounted when used for earthing.
6181B to BS 7889 cables are suitable for use in areas (such as public and government buildings) where smoke
and toxic fumes may cause a threat to life and equipment. When mechanical protection is required, they can be
embedded in concrete.

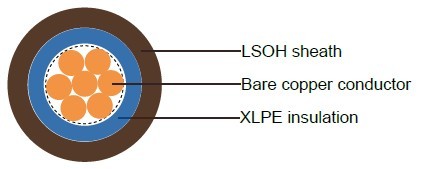

Cable Construction
Bare copper made of strands conductor
Stranding to IEC 60228 Class 2
XLPE insulation
LSOH sheath
Core Identification
Black, Blue, Brown
Technical Characteristics
Working voltage: 600/1000 volts
Minimum bending radius: up to 25 mm² 4xoverall diameter,
above 25 mm² 6xoverall diameter
Operating temperature: -15º C to +90º C
Insulation resistance: 10 MΩxkm
Halogen free acc. to EN 50267-2-1 / IEC 60754-1
Smoke density acc. to EN 50268-2 / IEC 61034-2
Corrosivity of gases acc. to EN 50267-2-2, IEC 60754-2
Flame retardancy acc. to EN 50265-2-1, IEC 60332-1
Cable Parameter
| AWG (No of Strands/ Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area #xmm² |
Nominal Thickness of Insulation mm |
Nominal Thickness of Sheath mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| 16(1/16) | 1x1.5 | 0.7 | 1.4 | 6 | 50 |
| 14(1/14) | 1x2.5 | 0.7 | 1.4 | 6.5 | 70 |
| 12(7/20) | 1x4 | 0.7 | 1.4 | 7 | 80 |
| 10(7/18) | 1x6 | 0.7 | 1.4 | 7.5 | 110 |
| 8(7/16) | 1x10 | 0.7 | 1.4 | 8.5 | 150 |
| 6(7/14) | 1x16 | 0.7 | 1.4 | 9.5 | 215 |
| 4(7/12) | 1x25 | 0.9 | 1.4 | 11.5 | 315 |
| 2(7/10) | 1x35 | 0.9 | 1.4 | 12 | 415 |
| 1(19/13) | 1x50 | 1 | 1.4 | 13 | 555 |
| 2/0(19/11) | 1x70 | 1.1 | 1.4 | 15 | 760 |
| 3/0(19/10) | 1x95 | 1.1 | 1.5 | 17 | 1025 |
| 4/0(37/12) | 1x120 | 1.2 | 1.5 | 18.5 | 1270 |
| 300MCM(37/11) | 1x150 | 1.4 | 1.6 | 21.5 | 1575 |
| 350MCM(37/10) | 1x185 | 1.6 | 1.6 | 23 | 1955 |
| 500MCM(61/11) | 1x240 | 1.7 | 1.7 | 26 | 2470 |
| (61/10) | 1x300 | 1.8 | 1.8 | 28 | 3155 |
| (61/9) | 1x400 | 2 | 1.9 | 32 | 4049 |
| (61/8) | 1x500 | 2.2 | 2 | 36 | 5100 |
| (127/10) | 1x630 | 2.4 | 2.2 | 40 | 6410 |
