Industrial Cables Single Core Fixed Wiring Cable

6491X/6491X HR to BS 6004



Application and Description

6491X/6491X HR to BS 6004 cables are designed for use as fixed wiring in domestic, Industrial power and

lighting applications such as light fittings, appliances, switchgear and control gear, they can be used in conduit

or trunking or surface mounted when used as an earth. 6491X is equivalent to H05V-U/H07V-U/H07V-R.The

heatresistant version is ideal for use in installation which are subject to direct contact with high temperature

equipments (e.g. varnishing machines and drying towers etc.).

Cable Construction

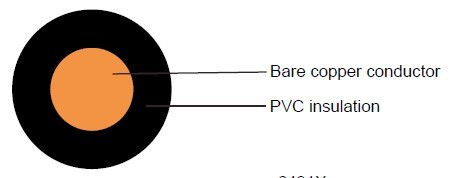

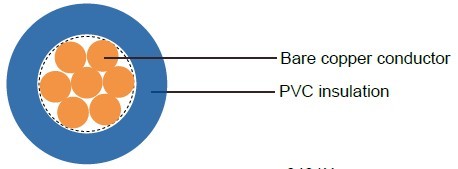

Bare copper made of solid/strands conductor

Solid to BS 6360 Class 1 or IEC 60228 Class 1(H05V-U/H07V-U)

Stranding to BS 6360 Class 2 or IEC 60228 Class 2(H07V-R.)

Special PVC TI1/TI3(for 6491X HR ) core insulation

H05V-U (20, 18 & 17 AWG)

H07V-U (16 AWG and Larger)

6491X/6491X HR to BS 6004

Core Identification

Green/Yellow, Black, Blue, Brown, Red, White, Grey, Violet

Technical Characteristics

Working voltage: 300/500 volts(H05V-R), 450/750 volts(H07V-U/H07V-R)

Test voltage: 2000 volts(H05V-R), 2500 volts(H07V-U/H07V-R)

Minimum bending radius: Up to 10mm²: 3xoverall diameter

10mm² to 25mm²: 4xoverall diameter

Above 25mm²: 5xoverall diameter

Operating temperature: -0º C to +70º C/105 º C(for 6491X HR)

Short circuit temperature: +160º C

Flame retardant: IEC 60332.1

Insulation resistance: 10 MΩxkm

6491X/6491X HR to BS 6004

Cable Parameter

AWG
(No of Strands/
Strand
Diameter)
No. of Cores  x Nominal Cross Sectional Area
#xmm²
Nominal
Thickness
of Insulation
mm
Nominal Overall Diameter
mm
Nominal Copper Weight kg/km Nominal Weight kg/km
H05V-U
20 1x0.5 0.6 2.1 4.8 9
18 1x0.75 0.6 2.2 7.2 11
17 1x1 0.6 2.4 9.6 14
H07V-U
16 1x1.5 0.7 2.9 14.4 21
14 1x2.5 0.8 3.5 24 33
12 1x4 0.8 3.9 38.0 49
10 1x6 0.8 4.5 58.0 69
8 1x10 1.0 5.7 96 115
H07V-R
16(7/24) 1x1.5 0.7 3.0 14.4 23
14(7/22) 1x2.5 0.8 3.6 24 35
12(7/20) 1x4 0.8 4.2 39 51
10(7/18) 1x6 0.8 4.7 58 71
8(7/16) 1x10 1 6.1 96 120
6(7/14) 1x16 1 7.2 154 170
4(7/12) 1x25 1.2 8.4 240 260
2(7/10) 1x35 1.2 9.5 336 350
1(19/13) 1x50 1.4 11.3 480 480
2/0(19/11) 1x70 1.4 12.6 672 680
3/0(19/10) 1x95 1.6 14.7 912 930
4/0(37/12) 1x120 1.6 16.2 1152 1160
300MCM(37/11) 1x150 1.8 18.1 1440 1430
350MCM(37/10) 1x185 2.0 20.2 1776 1780
500MCM(61/11) 1x240 2.2 22.9 2304 2360
(61/10) 1x300 2.4 24.5 2980 2940
(61/9) 1x400 2.6 27.5 3765 3740
