Industrial Cables Multi-Core Flexible Cables
Arctic Grade to BS 6500
Application and Description
Arctic Grade to BS 6500 cables are designed to withstand severe external temperatures. The Arctic Grade PVC
mains cords generally manufactured to BS6500 will remain flexible at temperatures down to minus -20°C making
them particularly suitable for outdoor applications and for use where flexibility is required at sub zero
temperatures. At normal temperatures the cable is very limp and flexible, offering some of the characteristics
usually found in elastomeric cables.

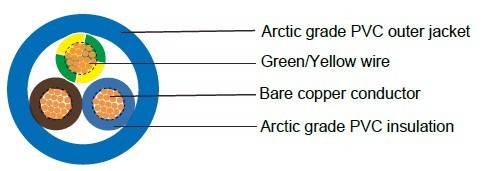

Cable Construction
Fine bare copper strands
Stranding to BS 6360 Class 5or IEC 60228 Class 5
Arctic grade PVC (Polyvinyl Chloride) insulation
Arctic grade PVC (Polyvinyl Chloride) sheath, blue/yellow
Core Identification
2 Cores: Blue, Brown
3 Cores: Green/Yellow, Blue, Brown
4 cores: Green/Yellow, Brown, Black, Grey
Technical Characteristics
Working voltage: 300/500 volts
Minimum bending radius: 6xOverall diameter
Operating temperature: -20º C to +70º C
Cable Parameter
| AWG (No of Strands/ Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area #xmm² |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| 18(24/32) | 2x0.75 | 6.2 | 58 |
| 17(32/32) | 2x1.0 | 6.4 | 67 |
| 16(30/30) | 2x1.5 | 7.4 | 89 |
| 14(50/30) | 2x2.5 | 9.2 | 140 |
| 12(56/28) | 2x4 | 10.4 | 200 |
| 16(30/30) | 3x1.5 | 8.1 | 90 |
| 14(50/30) | 3x2.5 | 10 | 180 |
| 12(56/28) | 3x4 | 11.4 | 240 |
| 10(84/28) | 3x6 | 13.2 | 315 |
| 16(30/30) | 4x1.5 | 9.5 | 130 |
| 14(50/30) | 4x2.5 | 11.3 | 315 |
