Industrial Cables Single Core Fixed Wiring Cable
Coil End Lead Cable to BS 6195 type 4
Application and Description
Coil End Lead Cable to BS 6195 type cables are designed as power leads for permanent connection to coil
winding motors, panel wiring and electrical machinery. They are able to withstand high temperature and
immersion in varnish. Other applications include vehicle wiring, The HOFR sheath resists oil and varnish and the
stranding is designed as a compromise between flexibility and positional stability. Also they are suitable for use
as an alternative to tri-rated and bi-rated cable in certain applications.

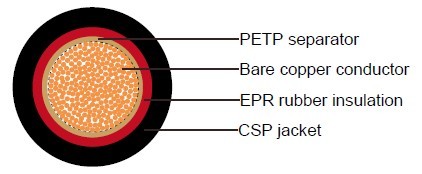

Cable Construction
Fine bare copper strands
Stranding to BS 6360 Class 5 or IEC 60228 Class 5
PETP(Polyethylene Terephthalate) tape separator
EPR-HOFR( Ethylene Propylene Rubber-Heat and Oil Resistant and Flame Retardant) insulation, type
FR1 (for type 4A & 4C) & type FR2 (for type 4D & 4E&4F) to BS 7655
CSP(Chlorosulphonated Polyethylene), HOFR (Heat and Oil Resistant and Flame Retardant) sheath
to BS 6899, black
Working voltage: Type 4A: 300/500V
Type 4C: 600/1000V
Type 4D: 1900/3300V
Type 4E: 3800/6600V
Type 4F: 6350/11000V
Minimum bending radius: 4xOverall diameter
Operating temperature: -20º C to +90º C
Cable Parameter
| AWG (No of Strands/ Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area #xmm² |
Nominal Thickness of Insulation mm | Nominal Overall Diameter mm |
Nominal Weight kg/km |
| TYPE 4A | ||||
| 18(24/32) | 1x0.75 | 0.8 | 3.5 | 16 |
| 17(32/32) | 1x1 | 0.8 | 3.7 | 19 |
| 16(30/30) | 1x1.5 | 0.8 | 4 | 25 |
| 14(50/30) | 1x2.5 | 0.9 | 4.6 | 37 |
| 12(56/28) | 1x4 | 1 | 5.4 | 57 |
| 10(84/28) | 1x6 | 1 | 6.5 | 80 |
| 8(80/26) | 1x10 | 1.2 | 7.9 | 130 |
| TYPE 4C | ||||
| 20(16/32) | 1x0.5 | 1.4 | 4.5 | 17 |
| 18(24/32) | 1x0.75 | 1.4 | 4.7 | 21 |
| 17(32/32) | 1x1 | 1.4 | 4.9 | 24 |
| 16(30/30) | 1x1.5 | 1.4 | 5.2 | 30 |
| 14(50/30) | 1x2.5 | 1.4 | 5.6 | 41 |
| 12(56/28) | 1x4 | 1.4 | 6.3 | 66 |
| 10(84/28) | 1x6 | 1.5 | 7.5 | 93 |
| 8(80/26) | 1x10 | 1.5 | 8.5 | 136 |
| 6(128/26) | 1x16 | 1.5 | 9.6 | 206 |
| 4(200/26) | 1x25 | 1.6 | 11.4 | 300 |
| 2(280/26) | 1x35 | 1.6 | 12.8 | 406 |
| 1(400/26) | 1x50 | 1.7 | 14.8 | 573 |
| 2/0(356/24) | 1x70 | 1.8 | 17.2 | 793 |
| 3/0(485/24) | 1x95 | 2 | 19.7 | 1028 |
| 4/0(614/24) | 1x120 | 2.2 | 21.9 | 1285 |
| 300 MCM (765/24) | 1x150 | 2.3 | 24.1 | 1562 |
| 350 MCM (944/24) | 1x185 | 2.4 | 26.3 | 1914 |
| 500MCM(1225/24) | 1x240 | 2.4 | 28.3 | 2431 |
| (1525/24) | 1x300 | 2.6 | 33 | 3024 |
| (2013/24) | 1x400 | 2.8 | 37.4 | 3948 |
| TYPE 4D | ||||
| 6(128/26) | 1x16 | 2.8 | 12.4 | 255 |
| 4(200/26) | 1x25 | 2.8 | 13.8 | 351 |
| 2(280/26) | 1x35 | 2.8 | 15.2 | 458 |
| 1(400/26) | 1x50 | 2.8 | 17.1 | 616 |
| 2/0(356/24) | 1x70 | 2.8 | 19.2 | 820 |
| 3/0(485/24) | 1x95 | 3 | 22 | 1097 |
| 4/0(614/24) | 1x120 | 3 | 23.5 | 1340 |
| 300 MCM (765/24) | 1x150 | 3 | 25.5 | 1635 |
| 350 MCM (944/24) | 1x185 | 3 | 27.5 | 1973 |
| 500MCM(1225/24) | 1x240 | 3 | 30.6 | 2504 |
| (1525/24) | 1x300 | 3 | 33.8 | 3098 |
| (2013/24) | 1x400 | 3 | 37.8 | 4045 |
| TYPE 4E | ||||
| 6(128/26) | 1x16 | 5 | 17.2 | 384 |
| 4(200/26) | 1x25 | 5 | 18.6 | 495 |
| 2(280/26) | 1x35 | 5 | 20 | 613 |
| 1(400/26) | 1x50 | 5 | 22.1 | 796 |
| 2/0(356/24) | 1x70 | 5 | 24.2 | 1020 |
| 3/0(485/24) | 1x95 | 5 | 26.3 | 1287 |
| 4/0(614/24) | 1x120 | 5 | 27.8 | 1542 |
| 300 MCM (765/24) | 1x150 | 5 | 29.8 | 1853 |
| 350 MCM (944/24) | 1x185 | 5 | 32.1 | 2225 |
| 500MCM(1225/24) | 1x240 | 5 | 35.1 | 2782 |
| TYPE 4F | ||||
| 6(128/26) | 1x16 | 7.6 | 22.9 | 566 |
| 4(200/26) | 1x25 | 7.6 | 24.1 | 680 |
| 2(280/26) | 1x35 | 7.6 | 25.5 | 810 |
| 1(400/26) | 1x50 | 7.6 | 27.3 | 997 |
| 2/0(356/24) | 1x70 | 7.6 | 29.4 | 1237 |
| 3/0(485/24) | 1x95 | 7.6 | 31.5 | 1520 |
| 4/0(614/24) | 1x120 | 7.6 | 33.3 | 1804 |
| 300 MCM (765/24) | 1x150 | 7.6 | 35.3 | 2131 |
| 350 MCM (944/24) | 1x185 | 7.6 | 37.3 | 2503 |
| 500MCM(1225/24) | 1x240 | 7.6 | 40.3 | 3081 |
