H01N2-D/E (NSKFF"OU)



Application and Description

These cables are used as a connection between the welding generator, the hand-electrode and the work piece.

For use in the automobile industry, ship building, transport and conveyor systems, tool making machinery,

welding robots etc.

These cables retain their high flexibility even under influence of ozone, light, oxygen, protective gases, oil and

petrol. Robust cable structure of these cables makes them resistant to low and high temperature, fire, ozone

and radiation, oils, acids, fats and petrols.

These cables are also ideal for outside installation in dry, moist and wet areas.

Standard and Approval

NF C 32-102-6

VDE-0282 Part-6

IEC 60332.3

IEC 60754.1

UNEL 35368

CEI 20-22 II

CEI 20-38

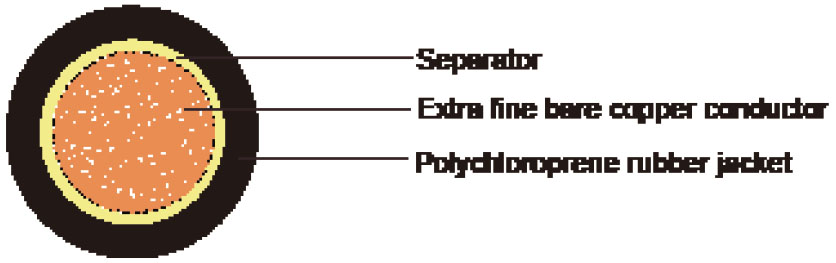

Cable Construction


Extra fine bare copper strands

Strands to DIN VDE 0295, BS 6360, IEC 60228 and HD 383

Strands to VDE-0295 as listed below

Synthetic or paper separator over core

Polychloroprene rubber (neoprene) jacket EM5

Technical Characteristics


Working voltage

100/100 volts

Test voltage

1000 volts

Flexing bending radius

12.0 x O

Fixed bending radius

7.5 x O

Flexing Temperature

-25oC to +80oC

Fixed Temperature

-40oC to +80oC

Flame retardant

NF C 32-070

Cable Parameter

Cables with Standard and Approval flexibility


AWG

No. of Cores x Nominal Cross Sectional Area

Nominal Thickness of Insulation

Nominal Overall Diameter

Nominal Copper Weight

Nominal Weight



# x mm^2

mm

mm

kg/km

kg/km

8(320/32)

1 x 10

2.0

7.7-9.7

96

135

6(512/32)

1 x 16

2.0

8.8-11.0

154

205

4(800/32)

1 x 25

2.0

10.1-12.7

240

302

2(1120/32)

1 x 35

2.0

11.4-14.2

336

420

1(1600/32)

1 x 50

2.2

13.2-16.5

480

586

2/0(2240/32)

1 x 70

2.4

15.3-19.2

672

798

3/0(3024/32)

1 x 95

2.6

17.1-21.4

912

1015

4/0(614/24)

1 x 120

2.8

19.2-24.0

1152

1310

300MCM(765/24)

1 x 150

3.0

21.2-26.4

1440

1620

350MCM(944/24)

1 x 185

3.2

23.1-28.9

1776

1916

500MCM(1225/24)

1 x 240

3.4

25.0-29.5

2304

2540

Cables with extreme high flexibility


AWG

No. of Cores x Nominal Cross Sectional Area

Nominal Thickness of Insulation

Nominal Overall Diameter

Nominal Copper Weight

Nominal Weight



# x mm^2

mm

mm

kg/km

kg/km

8(566/35)

1 x 10

1.2

6.2-7.8

96

119

6(903/35)

1 x 16

1.2

7.3-9.1

154

181

4(1407/35)

1 x 25

1.2

8.6-10.8

240

270

2(1974/35)

1 x 35

1.2

9.8-12.3

336

363

1(2830/35)

1 x 50

1.5

11.9-14.8

480

528

2/0(3952/35)

1 x 70

1.8

13.6-17.0

672

716

3/0(5370/35)

1 x 95

1.8

15.6-19.5

912

1012

4/0(3819/32)

1 x 120

1.8

17.2-21.6

1152

1190

300MCM(4788/32)

1 x 150

1.8

18.8-23.5

1440

1305

500MCM(5852/32)

1 x 185

1.8

20.4-25.5

1776

1511
