H03VV-F/H03VVH2-F



Application and Description

H03VV-F/H03VVH2-F cable types are especially suited for use on small appliances with low mechanical stress

and for connection for light household appliances, e.g. kitchen utensils, desk lamps, floor lamps, vacuum

cleaners, office machines, radios, etc. As far as these cables are admitted to the relevant specifications of the

equipment, They are not permitted for use with cooking or heating apparatus. H03VV-F/H03VVH2-F Cables with

cross section 0.75 mm² are not suitable for outdoor use or use of industrial or farmer machineries. Max

operating voltage in single or three phase system is Uo/U 330/330 volts. In a direct current system max

operating voltage is Uo/U 495/495 volts.

Standard and Approval

HD21.5, VDE 0281

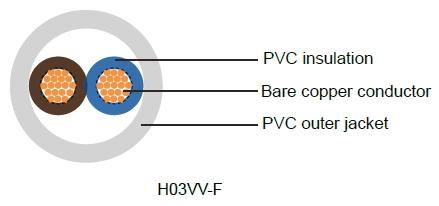

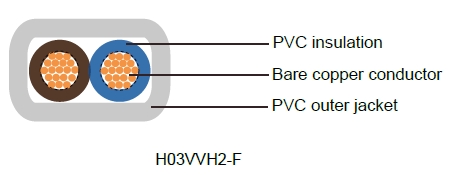

Cable Construction

H03VV-F/H03VVH2-FH03VV-F/H03VVH2-FIndustrial Cables

Bare copper fine wire conductor

Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383

PVC core insulation T12 to VDE-0281 Part 1

Color coded to VDE-0293-308

Green-yellow grounding (3 conductors and above)

PVC outer jacket TM2

Technical Characteristics

Working voltage: 300/300 volts

Test voltage: 2000 volts

Flexing bending radius: 7.5 x Ø

Static bending radius: 4 x Ø

Flexing temperature: -5º C to +70º C

Static temperature: -40º C to +70º C

Short circuit temperature: +160º C

Flame retardant: IEC 60332.1

Insulation resistance: 20 MΩ x km

Industrial CablesIndustrial Cables

Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area # x mm² Nominal Thickness of Insulation mm Nominal Thickness of Sheath mm Nominal Overall Diameter mm Nominal Copper Weight kg/Km Nominal Weight kg/Km
H03VV-F
20(16/32) 2 x 0.50 0.5 0.6 5 9.6 38
20(16/32) 3 x 0.50 0.5 0.6 5.4 14.4 45
20(16/32) 4 x 0.50 0.5 0.6 5.8 19.2 55
18(24/32) 2 x 0.75 0.5 0.6 5.5 14.4 46
18(24/32) 3 x 0.75 0.5 0.6 6 21.6 59
18(24/32) 4 x 0.75 0.5 0.6 6.5 28.8 72
18(24/32) 5 x 0.75 0.5 0.6 7.1 36.0 87
H03VVH2-F
20(16/32) 2 x 0.50 0.5 0.6 3.2 x 5.2 9.7 32
18(24/32) 2 x 0.75 0.5 0.6 3.4 x 5.6 14.4 35
