Industrial Cables

H05G-K/H07G-K

Application and Description

H05G-K/H07G-K cables are recommended for the internal wiring of switchboards and distributor boards as well

as in operating parts in or on lights. The higher temperature range allows for connections to heaters with an

alternating nominal voltage of 1000V. or direct nominal voltage of 750V.H05G-K/H07G-K cables are all allowed

for laying in tubes in and under plaster.

Standard and Approval

HD 22.7 S2, VDE-0282 Part-7

Cable Construction

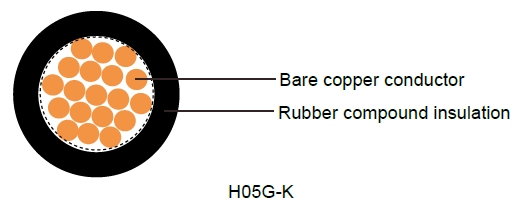

H05G-K/H07G-K

Fine bare copper strands

Strands to VDE-0295 Class-5, IEC 60228 Class-5

Rubber compound type EI3 (EVA) to DIN VDE 0282 part 7 insulation

Cores to VDE-0293 colors

Technical Characteristics

Working voltage: 300/500v (H05G-K), 450/750v (H07G-K)

Test voltage: 2000volts (H05G-K), 2500 volts (H07G-K)

Flexing bending radius: 7 x Ø

Static bending radius: 7 x Ø

Flexing temperature: -25º C to +110º C

Static temperature: -40º C to +110º C

Short circuit Temperature: +160º C

Flame retardant: IEC 60332.1

Insulation resistance: 10 MΩ x km

Cable Parameter

AWG	No. of Cores x Nominal Cross Sectional Area #x mm²	Nominal Thickness of Insulation mm	Nominal Overall Diameter mm	Nominal Copper Weight kg/Km	Nominal Weight kg/Km
H05G-K
20(16/32)	1 x 0.5	0.6	2.3	4.8	13
18(24/32)	1 x 0.75	0.6	2.6	7.2	16
17(32/32)	1 x 1	0.6	2.8	9.6	22
H07G-K
16(30/30)	1 x 1.5	0.8	3.4	14.4	24
14(50/30)	1 x 2.5	0.9	4.1	24	42
12(56/28)	1 x 4	1.0	5.1	38	61
10(84/28)	1 x 6	1.0	5.5	58	78
8(80/26)	1 x 10	1.2	6.8	96	130
6(128/26)	1 x 16	1.2	8.4	154	212
4(200/26)	1 x 25	1.4	9.9	240	323
2(280/26)	1 x 35	1.4	11.4	336	422
1(400/26)	1 x 50	1.6	13.2	480	527
2/0(356/24)	1 x 70	1.6	15.4	672	726
3/0(485/24)	1 x 95	1.8	17.2	912	937
4/0(614/24)	1 x 120	1.8	19.7	1152	1192
