Industrial Cables
H05RN-F/H05RNH2-F
Application and Description
H05RN-F/H05RNH2-F cables are flexible, mainly recommended for use in electrical equipment under low stress in
dry, damp and wet areas in indoor or outdoor environments. Commonly used for connection of electrical
appliances when exposed to low mechanical strain in household, offices and for light utilities. Anywhere where
there is minimal physical damage. Also suitable for fixed installation in furniture, decorative coverings, wall
partitions and pre-fabricated building parts. Max operating voltage in single or three phase system is Uo/U
318/550 volts. In a direct current system max operating voltage is Uo/U 413/825 volts. They are ozone
resistant, oil & fat resistant
Standard and Approval
HD22.4 S3, VDE-0282 Part-4

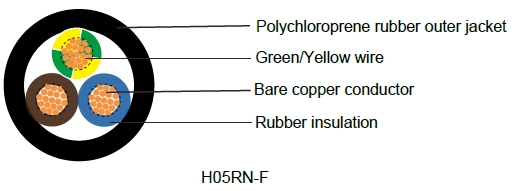

Cable Construction
Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
Rubber core insulation EI4 to VDE-0282 Part-1
Color code VDE-0293-308
Green-yellow grounding, 3 conductors and above
Polychloroprene rubber (neoprene) jacket EM2
Technical Characteristics
Working voltage: 300/500 volts
Test voltage: 2000 volts
Flexing bending radius: 7.5 x Ø
Fixed bending radius: 4.0 x Ø
Temperature Range: -30º C to +60º C
Short circuit temperature: +200 º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩ x km
Cable Parameter
| AWG | No. of Cores x Nominal Cross Sectional Area # x mm² | Nominal Thickness of Insulation mm | Nominal Thickness of Sheath mm | Nominal Overall Diameter mm min-max | Nominal Copper Weight kg/Km | Nominal Weight kg/Km |
| H05RN-F | ||||||
| 18(24/32) | 2 x 0.75 | 0.6 | 0.8 | 5.7 7.4 | 14.4 | 80 |
| 18(24/32) | 3 x 0.75 | 0.6 | 0.9 | 6.2 8.1 | 21.6 | 95 |
| 18(24/32) | 4 x 0.75 | 0.6 | 0.9 | 6.8 8.8 | 30 | 105 |
| 17(32/32) | 2 x 1 | 0.6 | 0.9 | 6.1 8.0 | 19 | 95 |
| 17(32/32) | 3 x 1 | 0.6 | 0.9 | 6.5 8.5 | 29 | 115 |
| 17(32/32) | 4 x 1 | 0.6 | 0.9 | 7.1 – 9.2 | 38 | 142 |
| 16(30/30) | 3 x 1.5 | 0.8 | 1.0 | 8.6 11.0 | 29 | 105 |
| 16(30/30) | 4 x 1.5 | 0.8 | 1.1 | 9.5 12.2 | 39 | 129 |
| 16(30/30) | 5 x 1.5 | 0.8 | 1.1 | 10.5 13.5 | 48 | 153 |

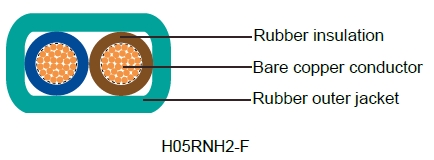

| H05RNH2-F | ||||||
| 16(30/30) | 2 x 1.5 | 0.6 | 0.8 | 5.25±0.15x13.50±0.30 | 14.4 | 80 |
| 14(50/30) | 2 x 2.5 | 0.6 | 0.9 | 5.25±0.15x13.50±0.30 | 21.6 | 95 |
