Industrial Cables
H05RR-F
Application and Description
H05RR-F cables are flexible rubber insulated; rubber jacketed harmonized cord, recommended for use in
equipment, which is subject to light and medium stresses in both dry and damp environments. For use with
electronics and electrical equipment such as appliances, small hand tools and office equipment They can
be found in flat irons, soldering irons, kitchen aids, toasters, stoves and in connections with light commercial
electric tools. Also suitable for fixed installation in furniture, decorative coverings, wall partitions and
prefabricated building parts. Max operating voltage in single or three phase system is Uo/U 300/500 volts. In a
direct current system max operating voltage is Uo/U 413/825 volts. Outdoor use is permitted only for a short
time. They are ozone resistant, oil & fat resistant.
Standard and Approval
HD22.4 S3, VDE-0282 Part-4

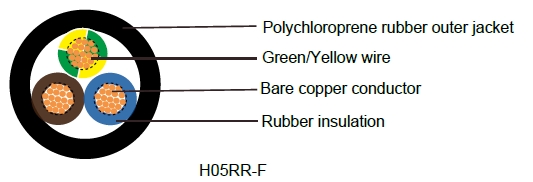

Cable Construction
Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
Rubber core insulation EI4 to VDE-0282 Part-1
Color code VDE-0293-308 and HD 186
Green-yellow grounding, 3 conductors and above
Polychloroprene rubber (neoprene) jacket EM3
Technical Characteristics
Working voltage: 300/500 volts
Test voltage: 2000 volts
Flexing bending radius: 8 x Ø
Fixed bending radius: 6 x Ø
Temperature range: -30º C to +60º C
Short circuit temperature: +200 º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩ x km
Cable Parameter
| AWG | No. of Cores x Nominal Cross Sectional Area # x mm² | Nominal Thickness of Insulation mm | Nominal Thickness of Sheath mm | Nominal Overall Diameter mm min-max | Nominal Copper Weight kg/Km | Nominal Weight kg/Km |
| 18(24/32) | 2 x 0.75 | 0.6 | 0.8 | 5.7-7.4 | 14.4 | 61 |
| 18(24/32) | 3 x 0.75 | 0.6 | 0.9 | 6.2-8.1 | 21.6 | 75 |
| 18(24/32) | 4 x 0.75 | 0.6 | 0.9 | 6.8-8.8 | 28.8 | 94 |
| 18(24/32) | 5 x 0.75 | 0.6 | 1.0 | 7.6-9.9 | 36.0 | 110 |
| 17(32/32) | 2 x 1 | 0.6 | 0.9 | 6.1-8.0 | 19.0 | 73 |
| 17(32/32) | 3 x 1 | 0.6 | 0.9 | 6.5-8.5 | 29.0 | 86 |
| 17(32/32) | 4 x 1 | 0.6 | 0.9 | 7.1-9.3 | 38.4 | 105 |
| 17(32/32) | 5 x 1 | 0.6 | 1.0 | 8.0-10.3 | 48.0 | 130 |
| 16(30/30) | 2 x 1.5 | 0.8 | 1.0 | 7.6-9.8 | 29.0 | 115 |
| 16(30/30) | 3 x 1.5 | 0.8 | 1.0 | 8.0-10.4 | 43.0 | 135 |
| 16(30/30) | 4 x 1.5 | 0.8 | 1.1 | 9.0-11.6 | 58.0 | 165 |
| 16(30/30) | 5 x 1.5 | 0.8 | 1.1 | 9.8-12.7 | 72.0 | 190 |
| 14(50/30) | 2 x 2.5 | 0.9 | 1.1 | 9.0-11.6 | 48.0 | 160 |
| 14(50/30) | 3 x 2.5 | 0.9 | 1.1 | 9.6-12.4 | 72.0 | 191 |
| 14(50/30) | 4 x 2.5 | 0.9 | 1.2 | 10.7-13.8 | 96.0 | 235 |
| 14(50/30) | 5 x 2.5 | 0.9 | 1.3 | 11.9-15.3 | 120.0 | 285 |
