Industrial Cables
H05V-K
Application and Description
H05V-K cables are determined for installation to the inside of apparatus as well as for the protective laying to
the lightings, in dry rooms, in production facilities, switch and distributors boards, in tubes, under and surface
mounting of plasters.
Standard and Approval
HD 21.3 S3, VDE-0281 Part-3

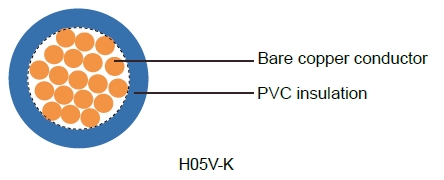

Cable Construction
Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
Special PVC TI1 core insulation
Cores to VDE-0293 colors on chart
Technical Characteristics
Working voltage: 300/500v
Test voltage: 2000 volts
Flexing bending radius: 12.5 x Ø
Static bending radius: 12.5 x Ø
Flexing temperature: -5º C to +70º C
Static temperature: -30º C to +80º C
Flame retardant: IEC 60332.1
Insulation resistance: 10 MΩ x km
Cable Parameter
| AWG | No. of Cores x Nominal Cross Sectional Area # x mm² | Nominal Thickness of Insulation mm | Nominal Overall Diameter mm | Nominal Copper Weight kg/Km | Nominal Weight kg/Km |
| 20(16/32) | 1 x 0.5 | 0,6 | 2.1 | 4.9 | 10 |
| 18(24/32) | 1 x 0.75 | 0,6 | 2.4 | 7.2 | 13 |
| 17(32/32) | 1 x 1 | 0,6 | 2.6 | 9.6 | 15 |
