H05V-R/H07V-R

Application and Description

H05V-R/H07V-R cables are preferably for installation indoors, in cable ducts and in industrial plants or switching

stations, under ground installation. Can be used in switchboards and distributor boards or where a thicker

strand of multi-wire is required. Found in electronic and electrical equipment and switchgear cabinets

designed for export to a European country and for MRO replacement of European made equipment wire.

Standard and Approval

HD 21.3 S3, VDE-0281 Part-3

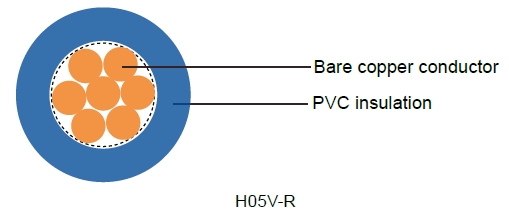

Cable Construction

H05V-R/H07V-R

Bare copper solid/strands conductor

Strands to VDE-0295 Class-2, IEC 60228 Cl-2

Special PVC TI1 core insulation

Cores to VDE-0293 colors on chart

Technical Characteristics

Working voltage: 300/500 volts(H05V-R), 450/750 volts(H07V-R)

Test voltage: 2000 volts(H05V-R), 2500 volts(H07V-R)

Flexing bending radius: 15 x Ø

Static bending radius: 15 x Ø

Flexing temperature: -5º C to +70º C

Static temperature: -30º C to +80º C

Short circuit temperature: +160º C

Flame retardant: IEC 60332.1

Insulation resistance: 10 MΩ x km

Cable Parameter

AWG	No. of Cores x Nominal Cross Sectional Area # x mm²	Nominal Thickness of Insulation mm	Nominal Overall Diameter mm	Nominal Copper Weight kg/Km	Nominal Weight kg/Km
H05V-R
20(7/29)	1 x 0.5	0.6	2.2	4.8	9
18(7/27)	1 x 0.75	0.6	2.4	7.2	12
17(7/26)	1 x 1	0.6	2.6	9.6	15
H07V-R
16(7/24)	1 x 1.5	0.7	3.0	14.4	23
14(7/22)	1 x 2.5	0.8	3.6	24	35
12(7/20)	1 x 4	0.8	4.2	39	51
10(7/18)	1 x 6	0.8	4.7	58	71
8(7/16)	1 x 10	1.0	6.1	96	120
6(7/14)	1 x 16	1.0	7.2	154	170
4(7/12)	1 x 25	1.2	8.4	240	260
2(7/10)	1 x 35	1.2	9.5	336	350
1(19/13)	1 x 50	1.4	11.3	480	480
2/0(19/11)	1 x 70	1,4	12.6	672	680
3/0(19/10)	1 x 95	1,6	14.7	912	930
4/0(37/12)	1 x 120	1,6	16.2	1152	1160
300MCM(37/11)	1 x 150	1,8	18.1	1440	1430
350MCM(37/10)	1 x 185	2,0	20.2	1776	1780
500MCM(61/11)	1 x 240	2,2	22.9	2304	2360
	1 x 300	2.4	24.5		2940
	1 x 400	2.6	27.5		3740
